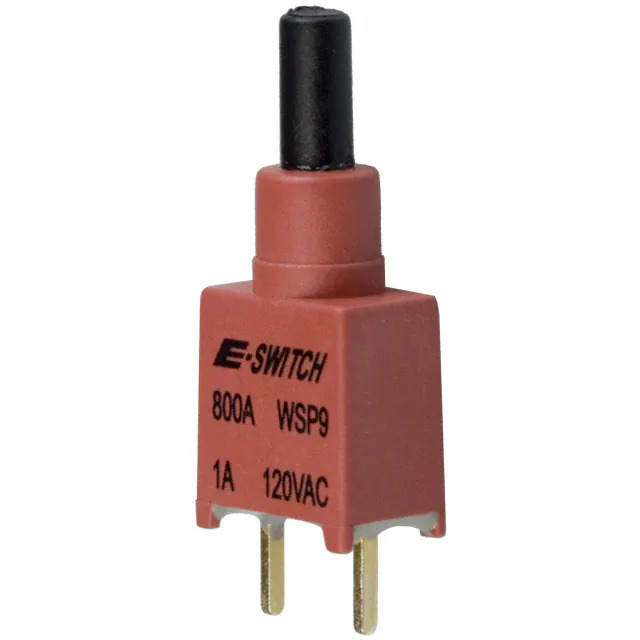

800AWSP9M2QE E-Switch
Same model may have multiple batches, images only for reference.

800AWSP9M2QE

Part No 800AWSP9M2QE
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 1A 120V
Datasheet
800AWSP9M2QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series 800A
Package Bulk
Product Status Active
Mounting Type Through Hole
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1A (AC)
Voltage Rating - AC 120 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life -
Electrical Life 50,000 Cycles
Base Product Number 800AWSP9
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376038-800AWSP9M2QE
Ultra Librarian 3D Model Ultra Librarian 800AWSP9M2QE CAD Model

Description

The 800AWSP9M2QE is a pushbutton switch from E-Switch.

  • Actuator Type: Round, Plunger
  • Actuator/Cap Color: Black
  • Voltage Rating: 120V AC
  • Current Rating: 1A AC
  • Switch Function: SPST-NO, Off-Mom
  • Sealed: Epoxy Sealed
  • Ingress Protection: IP67
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
