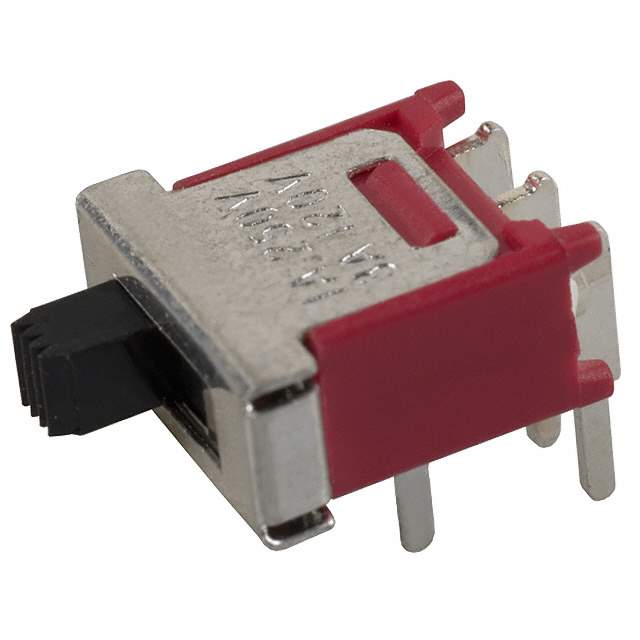

500ASSP1M6QE Real Image
Same model may have multiple batches, images only for reference.

500ASSP1M6QE

Part No 500ASSP1M6QE
Manufacturer E-Switch
Catalog Slide Switches
Description SWITCH SLIDE SPDT 3A 120V  /  Slide Switch SPDT Through Hole, Right Angle
Datasheet
500ASSP1M6QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr E-Switch
Series 500A
Package Bulk
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 3.10mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 3.05mm
Mechanical Life 30,000 Cycles
Electrical Life 30,000 Cycles
Base Product Number 500ASSP1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names EG2483,T551101
Standard Package 54
Win Source Part Number 1038939-500ASSP1M6QE
Ultra Librarian 3D Model Ultra Librarian 500ASSP1M6QE CAD Model

Description

The E-Switch 1038939-500ASSP1M6QE is a through-hole, right angle switch with a PC pin termination style. It has a voltage rating of 120V (AC) and a current rating of 3A (AC/DC).

  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Termination Style: PC Pin
  • Voltage Rating: 120V (AC)
  • Current Rating: 3A (AC/DC)
  • Switch Function: On-On
  • Circuit: SPDT
  • Actuator Type: Standard
  • Actuator Length: 3.10mm
  • Switch Travel: 3.05mm
  • Actuator/Cap Color: Not Specified
  • Electrical Life: 30,000 Cycles
  • Mechanical Life: 30,000 Cycles
  • Temperature Range: -30°C to 85°C
