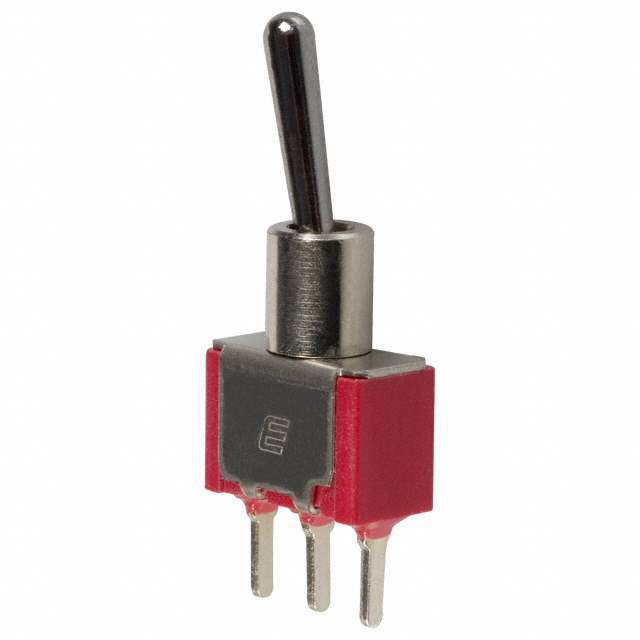

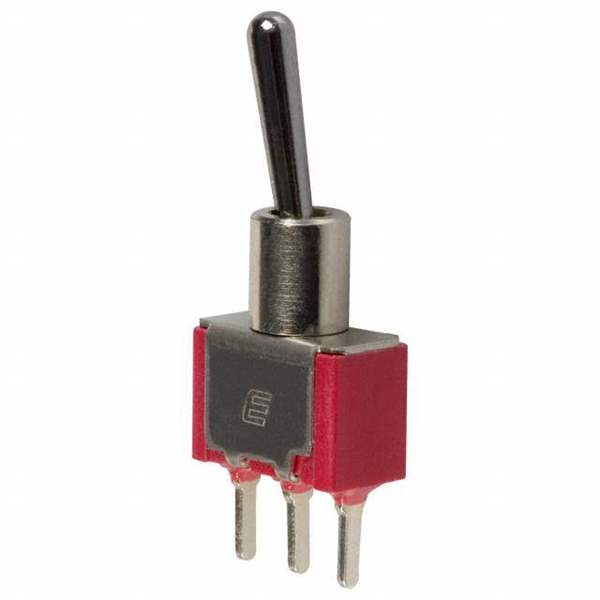

100SP1T1B4M2QE E-Switch
Same model may have multiple batches, images only for reference.

100SP1T1B4M2QE

Part No 100SP1T1B4M2QE
Manufacturer E-Switch
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 5A 120V
Datasheet
100SP1T1B4M2QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202454-100SP1T1B4M2QE
Manufacturer E-Switch
Category Switches -Toggle Switches
Series 100
Package Bulk
Product Status Active
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Operating Temperature -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Ultra Librarian 3D Model Ultra Librarian 100SP1T1B4M2QE CAD Model

Description

The E-Switch 100 series toggle switch is a reliable and durable component for various electronic applications.

  • Termination Style: PC Pin
  • Terminals: Epoxy Sealed
  • Actuator Material: Brass and Chrome Plated
  • Operating Temperature Range: -30°C to 85°C
  • Packaging: Bulk
  • Status: Active
  • Mounting Type: Through Hole
