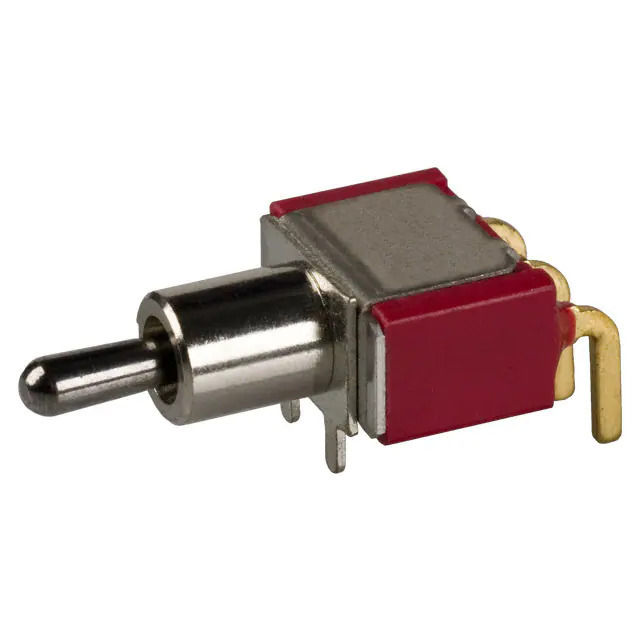

100SP3T2B4M6RE E-Switch
Same model may have multiple batches, images only for reference.

100SP3T2B4M6RE

Part No 100SP3T2B4M6RE
Manufacturer E-Switch
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V
Datasheet
100SP3T2B4M6RE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr E-Switch
Series 100
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 5.08mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Panel Cutout Dimensions -
Bushing Thread Unthreaded
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number 100SP3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376029-100SP3T2B4M6RE
Ultra Librarian 3D Model Ultra Librarian 100SP3T2B4M6RE CAD Model

Description

The Toggle Switch from E-Switch is a high-quality electronic component designed for various applications.

  • Series: 100
  • Product Status: Active
  • Circuit: SPDT
  • Current Rating (AC/DC): 0.4VA (AC/DC)
  • Temperature Range: -30°C to 85°C
  • Voltage Rating (AC): 20VAC
  • Voltage Rating (DC): 20VDC
  • Actuator Type: Standard Round
  • Illumination: Non-Illuminated
  • Terminal Type: Epoxy Sealed
  • Mechanical Life: 40,000 cycles
  • Mounting Type: Through Hole
  • Mounting Orientation: Right Angle
