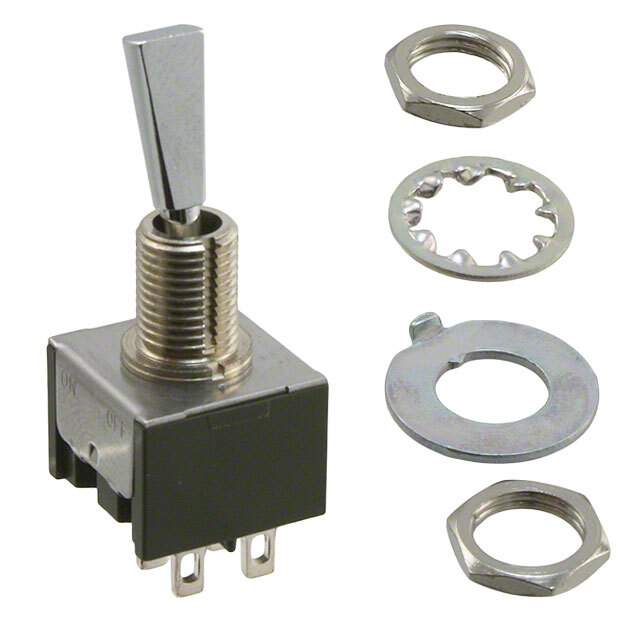

M2021ES1W01 Real Image
Same model may have multiple batches, images only for reference.

M2021ES1W01

Part No M2021ES1W01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE DPST 6A 125V
Datasheet
M2021ES1W01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Series M
Packaging Bulk
Circuit DPST
Switch Function On-Off
Current Rating 6A (AC), 4A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Flatted
Actuator Length 11.40mm
Illumination Non-Illuminated
Mounting Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Operating Temperature Range -30°C ~ 85°C
Win Source Part Number 761690-M2021ES1W01
Popularity Medium
Supply and Demand Status Balance
Family Name M
Introduction Date April 01, 2006
ECCN EAR99
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian M2021ES1W01 CAD Model

Description

The NKK Switches M series panel mount switch is a DPST switch with an on-off function.

  • Circuit: DPST
  • Switch Function: On-off
  • Current Rating (AC): 6A
  • Current Rating (DC): 4A
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 30V
  • Actuator Type: Flatted
  • Bushing Thread: 1/4-40
  • Panel Cutout Dimension: Circular - 6.50mm Dia
  • Sealing: Epoxy sealed
  • Actuator Material: Brass, chrome-plated
  • Operating Temperature Range: -30°C ~ 85°C
  • Electrical Life: 25,000 cycles
  • Illumination: No
  • RoHS Compliance: No
