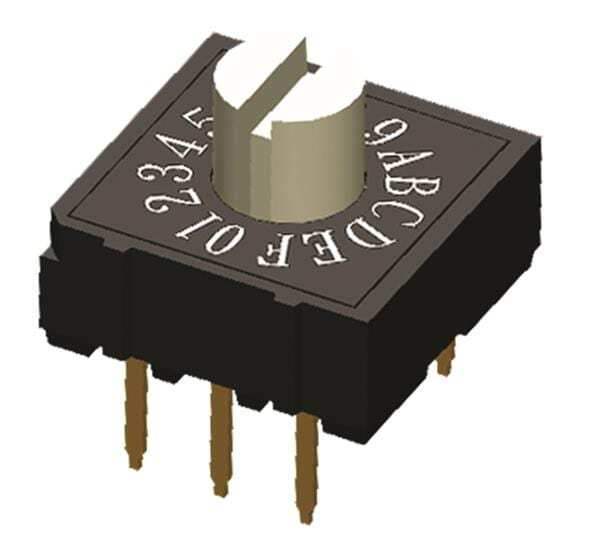

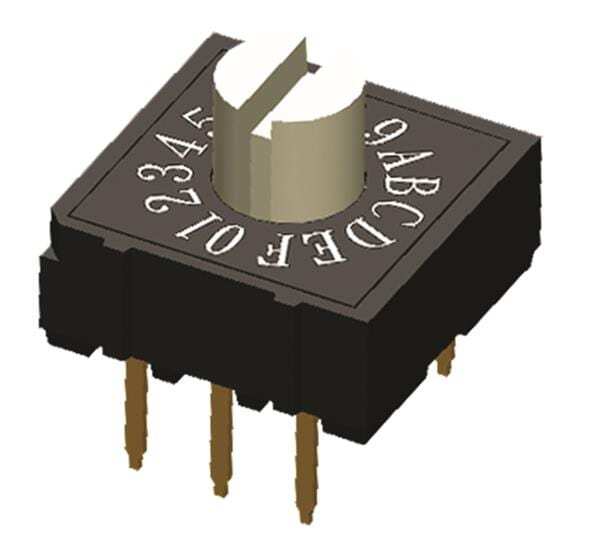

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Diptronics
Number of Positions 10 Position
Output Code Real
Actuator Rotary
Mounting Style PCB Mount
Termination Style Through Hole
Packaging Tube
Current Rating 25 mA
Length 10 mm
Voltage Rating DC 24 VDC
Width 10 mm
Brand Diptronics
Illuminated Non-Illuminated
Terminal Arrangement 4 x 2
Actuator Style Rotary
Dielectric Strength 250 VAC
Life 20000 Cycle
Maximum Operating Temperature + 80 C
Minimum Operating Temperature - 25 C
Product Type Rotary Switches
Standard Pack Qty 48
Subcategory Switches
Ultra Librarian 3D Model Ultra Librarian RH4AF-10R-V-B CAD Model
