The P6SMBJ60 is a Transient Voltage Suppressor (TVS) diode manufactured by DIOTEC Electronics Corporation. It is designed to protect sensitive electronic circuits from voltage transients induced by lightning, electrostatic discharge (ESD), inductive load switching, and other transient voltage events. This diode is part of the P6SMBJ series, which offers a range of voltage ratings to suit various application requirements.

Applications

• I/O interfaces
• VCC bus protection
• Data lines
• Telecommunication equipment
• Industrial control systems

Features

• Peak Pulse Power: 600W peak pulse power capability with a 10/1000μs waveform.
• Stand-off Voltage: 60V stand-off voltage (VRWM).
• Breakdown Voltage: Minimum breakdown voltage (VBR) of 66.7V.
• Clamping Voltage: Maximum clamping voltage (VC) of 96.8V at peak pulse current (IPP).
• Low Leakage Current: Low leakage current (IR) at the stand-off voltage.
• Fast Response Time: Fast response time, typically less than 1 picosecond from 0V to breakdown voltage.
• Unidirectional Configuration: Available in a unidirectional configuration.

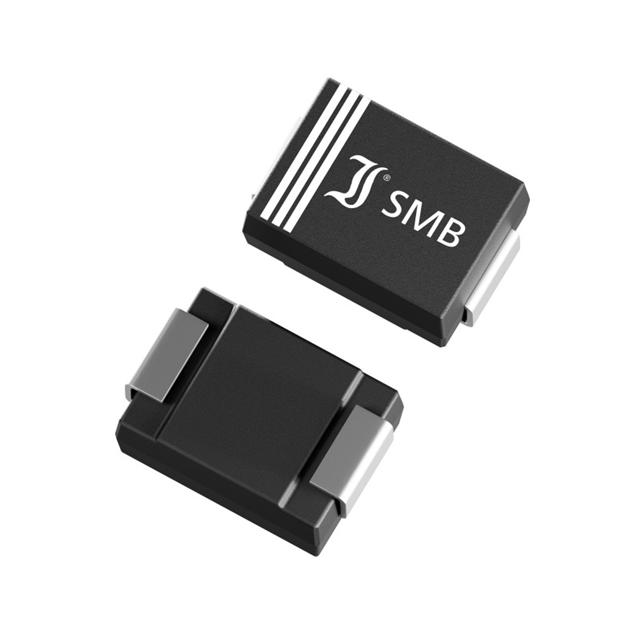

• SMB Package: Surface mount SMB (DO-214AA) package.
• RoHS Compliant: Compliant with RoHS directives for environmental protection.

Benefits

• Circuit Protection: Provides robust protection against voltage transients, enhancing the reliability of electronic circuits.
• High Surge Capability: High peak pulse power capability ensures effective protection against high-energy transients.
• Fast Response: Fast response time prevents damage to sensitive components by quickly clamping transient voltages.
• Compact Size: SMB package allows for efficient use of board space.
• Easy to Use: Simple to implement in circuit designs.

Additional Details

The P6SMBJ60 TVS diode is designed to clamp transient voltages to a safe level, protecting downstream components from overvoltage stress. It operates by avalanche breakdown, diverting excess current away from the protected circuit. The SMB package provides good thermal performance, allowing the diode to dissipate heat effectively during surge events. The P6SMBJ60 is commonly used in applications where reliable protection against voltage transients is critical.
