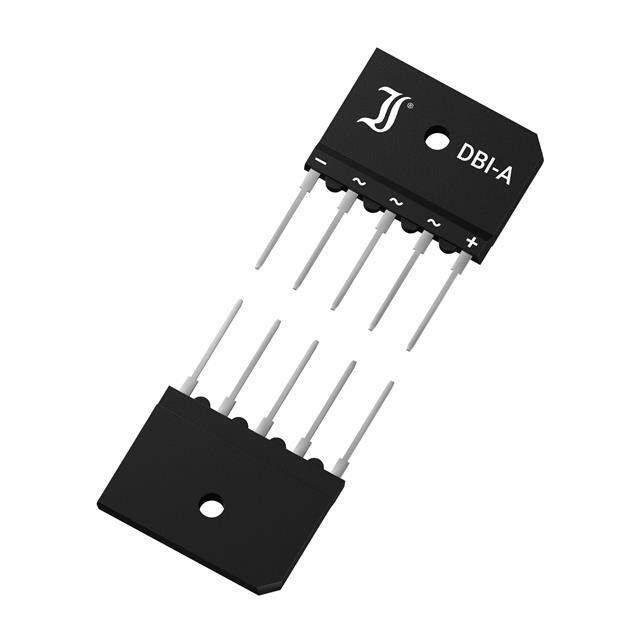

The DBI25-16A is a single-phase bridge rectifier manufactured by DIOTEC Electronics Corporation. It is designed to convert alternating current (AC) to direct current (DC). This component is commonly used in power supplies, battery chargers, and various electronic devices that require a stable DC voltage from an AC source.

Applications:

• Power Supplies: Used in linear power supplies to convert AC line voltage to DC voltage for powering electronic circuits.
• Battery Chargers: Employed in battery chargers to rectify AC voltage for charging batteries.
• Motor Drives: Utilized in motor control circuits to convert AC voltage to DC voltage for driving DC motors.
• LED Lighting: Used in LED drivers to rectify AC voltage for powering LEDs.

Features:

• High Surge Current Capability: Can withstand high surge currents, providing protection against voltage spikes.
• High Forward Current: Designed to handle a continuous forward current of 25 Amperes.
• High Reverse Voltage: Withstands a peak reverse voltage of 1600 Volts.
• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• Compact Size: Offers a small footprint for space-constrained applications.
• Excellent Heat Dissipation: Efficiently dissipates heat, ensuring reliable operation.

Benefits:

• Reliable AC-to-DC Conversion: Provides stable DC voltage for powering electronic devices.
• Protection Against Voltage Spikes: High surge current capability protects against voltage transients.
• High Efficiency: Low forward voltage drop minimizes power loss.
• Easy Installation: Can be easily mounted on a PCB or chassis.

Additional Details:

The DBI25-16A is typically mounted on a heatsink to ensure proper thermal management. The device features four terminals: two for AC input and two for DC output. The datasheet provides detailed specifications for forward voltage drop, reverse leakage current, and thermal resistance. It's important to follow the manufacturer's recommendations for mounting and heat sinking to ensure reliable operation and prevent overheating. The DBI25-16A is a robust and reliable bridge rectifier suitable for a wide range of applications requiring AC-to-DC conversion.
