Same model may have multiple batches, images only for reference.

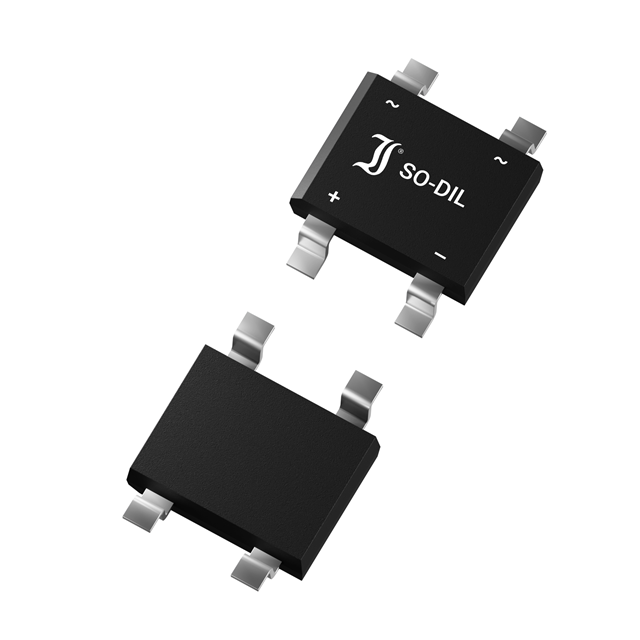

B500S15A Real Image
Same model may have multiple batches, images only for reference.

B500S15A

Part No B500S15A
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER, SINGLE PHASE,  /  Bridge Rectifier Single Phase Standard 1 kV Surface Mount 4-SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Diotec Semiconductor
Package Strip
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 1 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case TO-269AA, 4-BESOP
Supplier Device Package 4-SOIC
Other Names 2721-B500S15A
Standard Package 10
Win Source Part Number 961743-B500S15A
Ultra Librarian 3D Model Ultra Librarian B500S15A CAD Model

Description

The Diotec Semiconductor B500S15A is a single-phase diode bridge rectifier that is part of the discrete semiconductor products category.

  • Manufacturer: Diotec Semiconductor
  • Package/Case: TO-269AA, 4-BESOP
  • Mounting: SMD (SMT)
  • Standard Package: 10
  • Current Average Rectified (Io): 1.5A
  • Voltage Forward (Vf) (Max) @ If: 1.1V @ 1A
  • Current Reverse Leakage @ Vr: 5 μA @ 1V
  • Voltage Peak Reverse (Max): 1kV
