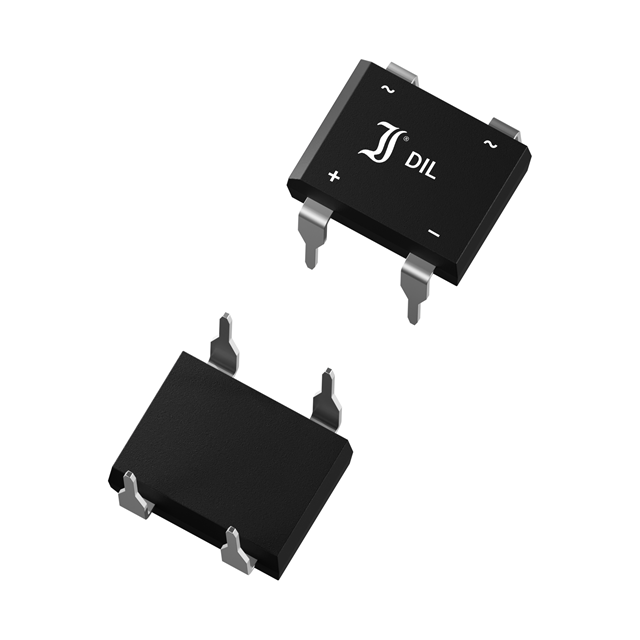

Same model may have multiple batches, images only for reference.

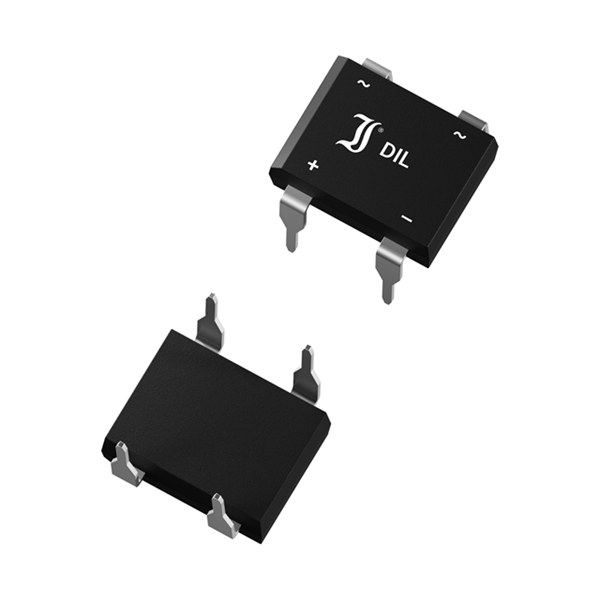

B250D Real Image
Same model may have multiple batches, images only for reference.

B250D

Part No B250D
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description 1PH BRIDGE DIL 600V 1A  /  Bridge Rectifier Single Phase Standard 600 V Through Hole DFM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Diotec Semiconductor
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-EDIP (0.300", 7.62mm)
Supplier Device Package DFM
MSL Level Not Applicable
HTSUS 8541.10.0000
Other Names 2721-B250D,2796-B250D
Standard Package 50
Win Source Part Number 969708-B250D
Ultra Librarian 3D Model Ultra Librarian B250D CAD Model

Description

Diotec Semiconductor brings you a high-quality Diode Bridge Rectifier that is perfect for your electronic projects.

  • Win Source Part Number: 969708-B250D
  • Diode Type: Single-phase
  • Current Average Rectified (Io): 1A
  • Voltage-forward (Vf) (Max) @ If: 1.1V @ 1A
  • Current Reverse Leakage @ Vr: 5 μA @ 600V
  • Voltage-peak reverse (Max): 600V
  • Mounting type: Through-hole
  • Package/Case: 4-EDIP (0.300", 7.62mm)
  • Supplier Device Package: DFM
  • Temperature range: -50°C ~ 150°C (TJ)
  • MSL level: Not applicable
  • HTSUS code: 8541.10.0000
  • Also known as: 2721-B250D and 2796-B250D
