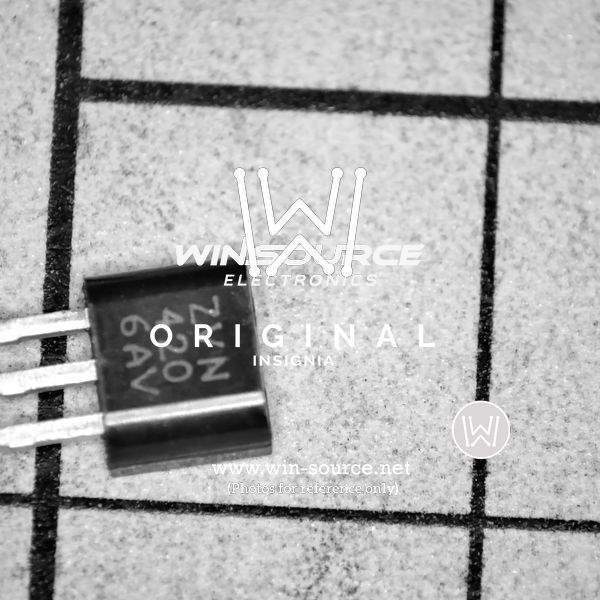

The ZVN4206AV from Diodes Incorporated is a high-performance, N-channel enhancement mode vertical DMOS FET ideally suited for a wide range of switching and amplification applications. This MOSFET is designed to deliver efficient power management and control across various electronic circuits, making it a versatile choice for designers and engineers.

Key Features

• High Continuous Drain Current: With a continuous drain current (I<sub>D) of 600mA, the ZVN4206AV can handle significant current, making it suitable for high-power applications.
• Low On-Resistance: The device offers a low on-resistance (R<sub>DS(on)) of only 1.2 ohms at V<sub>GS = 10V, ensuring efficient operation and reduced power loss.
• High Breakdown Voltage: A high breakdown voltage (BV<sub>DSS) of 60V provides a robust operating margin for applications requiring high voltage handling capability.
• Enhanced Thermal Performance: The ZVN4206AV is encapsulated in a TO-92 package, known for its excellent thermal performance and reliability in various environments.

Applications

The ZVN4206AV can be employed in a diverse range of applications, including but not limited to:

• Power Management Circuits
• Motor Control Systems
• Relay and Solenoid Drivers
• DC-DC Converters
• Amplifier Switches

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products. The ZVN4206AV MOSFET is manufactured to meet stringent quality standards, ensuring reliable performance and a long operational lifespan for the end-user's application. Its robust construction and adherence to industry certifications underscore its reliability in demanding conditions.

Summary

The ZVN4206AV is a highly reliable and efficient N-channel MOSFET from Diodes Incorporated, designed to meet the needs of modern electronic applications requiring high current, low on-resistance, and high voltage capabilities. Its versatile performance and robust package make it an excellent choice for a broad array of power management and control tasks.
