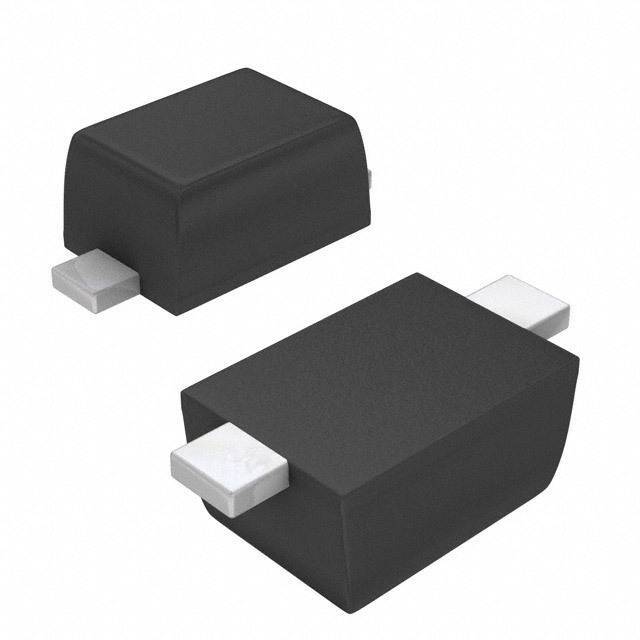

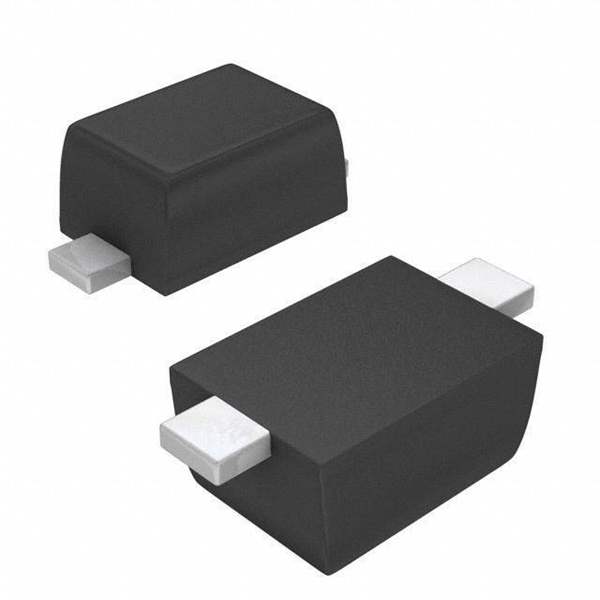

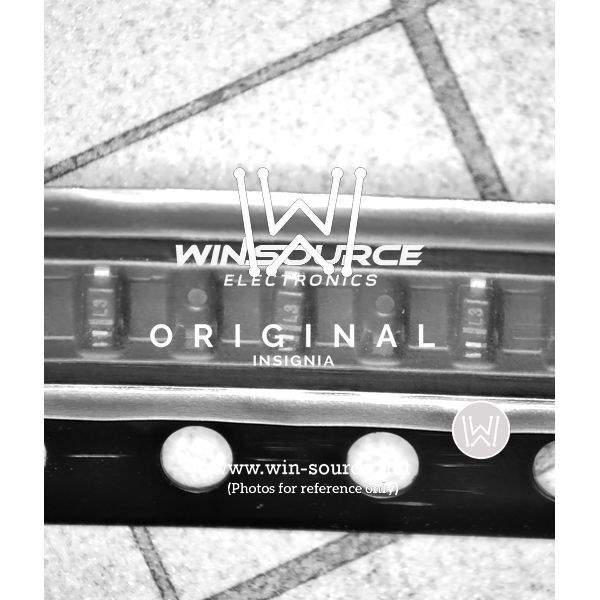

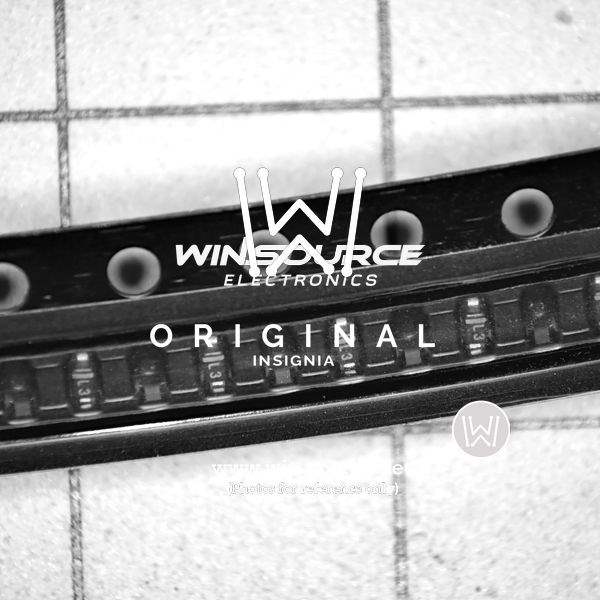

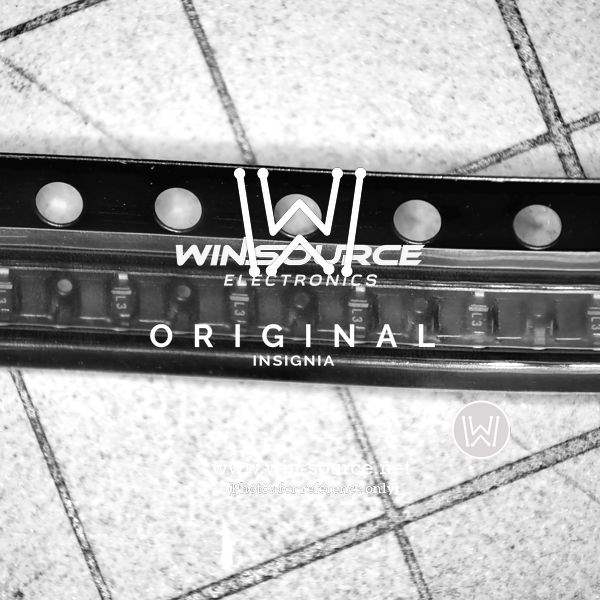

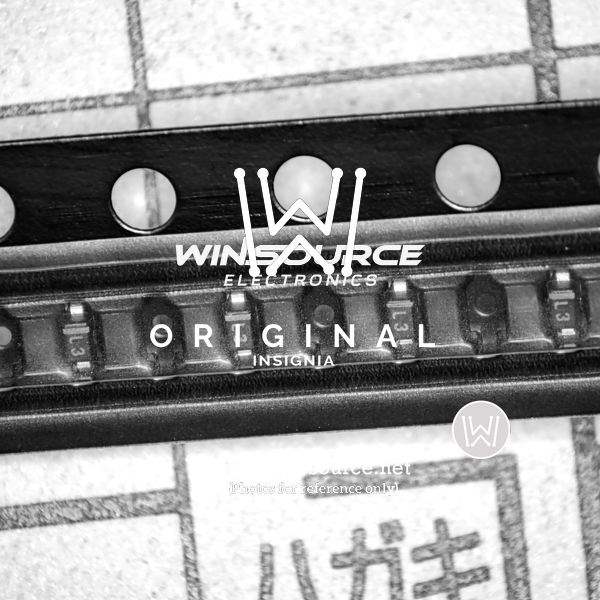

ZLLS350TA

Part No ZLLS350TA
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 380MA SOD523
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 380mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 275mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 1ns
Current - Reverse Leakage @ Vr 4μA @ 30V
Capacitance @ Vr, F 6pF @ 30V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-523
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 036747-ZLLS350TA
Family Name ZLLS350
Introduction Date March 20, 2003
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ZLLS350TA CAD Model

Description

Introducing the ZLLS350TA Schottky Barrier Diode from Diodes Incorporated

The ZLLS350TA is a high-performance Schottky barrier diode designed and manufactured by the renowned semiconductor company, Diodes Incorporated. This diode is engineered to provide efficient and reliable performance in a variety of electronic applications, including power management, voltage clamping, and protection circuits. With its compact form factor and robust features, the ZLLS350TA is an ideal choice for designers looking to enhance their power circuitry.

Key Features of the ZLLS350TA

  • Low Forward Voltage Drop: The ZLLS350TA offers a low forward voltage drop, which reduces power loss and improves efficiency in applications where it is used. This characteristic is particularly beneficial in power-sensitive designs.
  • High Current Capability: With its ability to handle high currents, this diode is suitable for use in high-load situations, ensuring reliability and longevity even under strenuous conditions.
  • Fast Switching Speed: The fast switching capability of the ZLLS350TA makes it an excellent choice for high-frequency applications where rapid transitions are crucial.
  • Low Leakage Current: The device features a low leakage current, which minimizes power loss when the diode is in the reverse-biased state, contributing to the overall energy efficiency of the system.
  • Surface Mount Package: Packaged in a SOD-323 configuration, the ZLLS350TA is designed for surface mount technology (SMT), allowing for efficient assembly and space-saving on printed circuit boards (PCBs).

Applications

The ZLLS350TA is versatile and can be utilized in a wide array of electronic devices and systems. Some of the common applications include:

  • DC-DC Converters
  • Power Supply Circuits
  • Battery Charging Systems
  • Voltage Clamping Operations
  • Reverse Voltage Protection

Diodes Incorporated's commitment to quality ensures that the ZLLS350TA Schottky barrier diode is a reliable and effective component for your electronic design needs. Its superior electrical characteristics, combined with its small footprint, make it an excellent choice for both new designs and upgrades to existing systems where improved efficiency and performance are desired.
