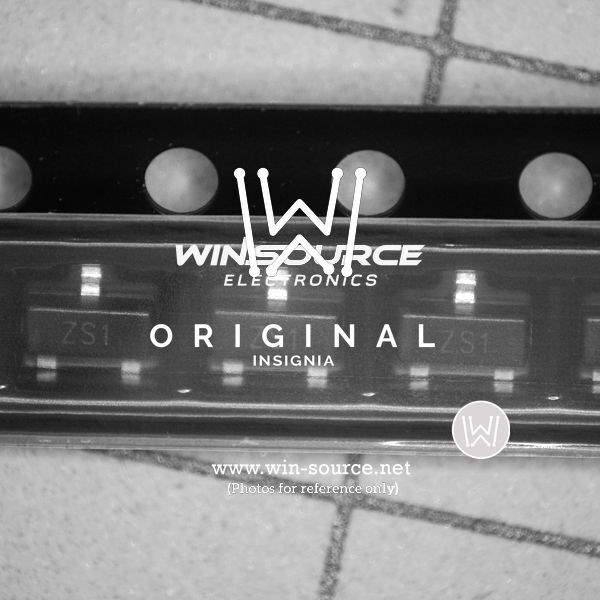

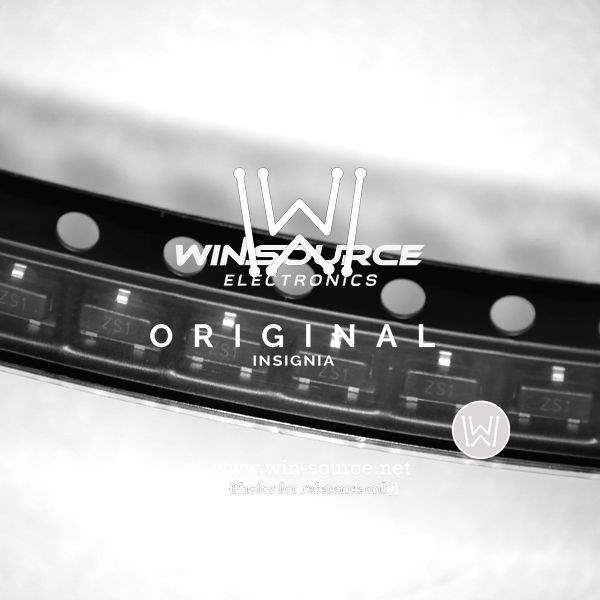

The ZHCS1000TA is a high-performance Schottky barrier rectifier designed by Diodes Incorporated, optimized for low forward voltage drop and high-frequency operation. This component is part of Diodes Incorporated's extensive range of discrete, analog, and mixed-signal semiconductors, tailored to provide efficient solutions for electronic systems.

Key Features

• Low Forward Voltage: The ZHCS1000TA boasts a low forward voltage, which enhances the overall efficiency of the system by reducing power losses during conduction.
• High Current Capability: With its ability to handle a high forward surge current, this device is well-suited for applications that require robust performance under surge conditions.
• Low Power Loss: The low power loss characteristics of the ZHCS1000TA make it an ideal choice for high-efficiency power management applications.
• High Frequency Operation: This Schottky barrier rectifier is designed to operate at high frequencies, making it suitable for switching power supplies, converters, and other high-speed power switching applications.
• Compact SOD-323 Packaging: The small footprint of the SOD-323 package allows for space-saving PCB design, which is critical in miniaturized electronic devices.

Applications

The ZHCS1000TA is versatile and can be used in a variety of applications, including but not limited to:

• DC-DC Converters
• Power Supply Units
• Battery Charging Systems
• LED Lighting
• Portable Devices
• Automotive Applications

Technical Specifications

The device features a repetitive peak reverse voltage of 40V and a forward continuous current of 1A. Its low forward voltage drop typically sits at 0.55V, contributing to its high efficiency. The ZHCS1000TA can also withstand a peak forward surge current of 10A, offering reliable performance in demanding conditions.

In summary, the ZHCS1000TA from Diodes Incorporated is a robust and efficient Schottky barrier rectifier that is well-suited for high-frequency, high-efficiency applications. Its compact packaging and superior electrical characteristics make it an excellent choice for designers looking to optimize power management in their next-generation electronic products.
