Product Overview: STPR1020CTW from Diodes Incorporated

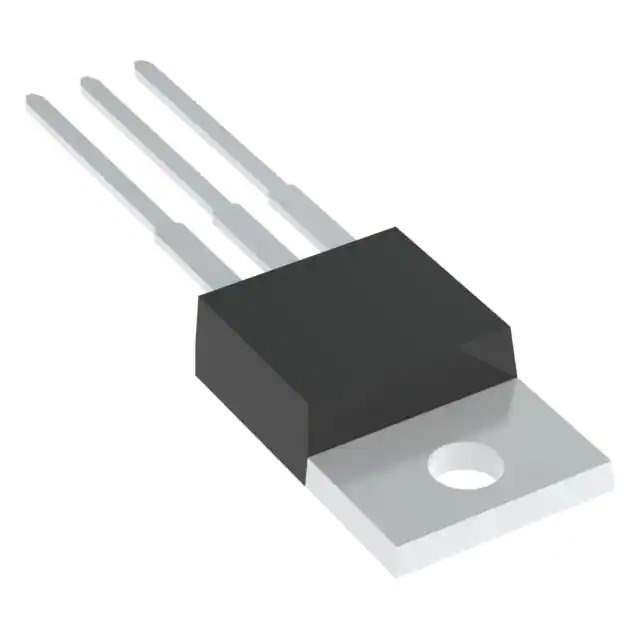

The STPR1020CTW is a high-performance Schottky barrier rectifier designed by Diodes Incorporated, renowned for its efficiency and reliability in various electronic applications. This rectifier is housed in a TO-220AB package, which is known for its robustness and excellent heat dissipation properties, making it suitable for high-power and high-temperature operations.

Key Features

• High Current Capability: The STPR1020CTW offers a forward continuous current of 10A, making it capable of handling high current requirements in power supply circuits.
• Low Forward Voltage Drop: With a forward voltage drop as low as 0.55V, this component ensures high efficiency, which is critical in energy-sensitive applications.
• Fast Switching Speed: The device's fast switching speed minimizes energy loss during the transition phase, contributing to the overall efficiency of the circuit.
• High Surge Current Capability: It is designed to withstand high surge currents, providing a robust solution for applications prone to surges and spikes.
• RoHS Compliant: The STPR1020CTW complies with the RoHS directive, making it environmentally friendly and suitable for use in a wide range of markets.

Applications

The STPR1020CTW is ideal for use in a variety of applications, including:

• Power supply units
• DC-DC converters
• Freewheeling diodes in converters and motor control circuits
• Automotive applications
• High-frequency rectification in telecommunications power supplies

Technical Specifications

Parameter Value Package Type TO-220AB Average Rectified Current 10A Forward Voltage Drop 0.55V Operating Temperature Range -65°C to 150°C Storage Temperature Range -65°C to 175°C

Overall, the STPR1020CTW from Diodes Incorporated stands out as a reliable and efficient solution for designers looking to improve the performance and robustness of their power management systems.
