Product Overview: SMAJ5.0A-13-F - Diodes Incorporated

The SMAJ5.0A-13-F is a robust surface-mount Transient Voltage Suppressor (TVS) diode designed by Diodes Incorporated to protect sensitive electronic equipment from voltage transients induced by system inductance and lightning. This high-quality TVS diode is specifically engineered to shield voltage-sensitive components from destruction or degradation, ensuring the reliability and longevity of electronic systems.

Key Features

• Stand-Off Voltage: The SMAJ5.0A-13-F offers a stand-off voltage of 5.0V, making it suitable for a range of applications that require a specific operating voltage level for protection.
• Peak Pulse Power: It can withstand peak pulse power dissipation of 400W for 10/1000μs waveforms, providing a robust shield against high energy transients.
• Clamping Voltage: Upon encountering a voltage spike, the device clamps to a low voltage of 9.2V, ensuring that the components downstream are not exposed to harmful levels of voltage.
• Fast Response Time: The diode's response time is less than 1ns from 0V to BV min, offering instantaneous protection from electrical surges.
• Low Incremental Surge Resistance: The SMAJ5.0A-13-F features a low incremental surge resistance, which enhances its ability to absorb transient energy without significant resistance increase during surge events.

Applications

The SMAJ5.0A-13-F is ideal for a variety of applications that require high surge protection. Common uses include:

• Power supply circuits
• Communication systems
• Automotive systems
• Industrial electronics
• Consumer electronics

Package and Quality Assurance

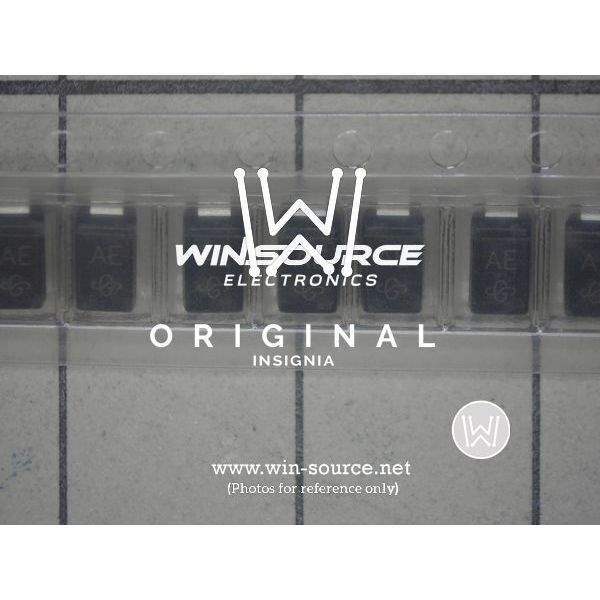

Housed in the industry-standard DO-214AC (SMA) package, the SMAJ5.0A-13-F is compact and suitable for automated assembly processes. The component is RoHS compliant and meets the MSL level 1 standard, per J-STD-020, ensuring high reliability and environmental safety. Diodes Incorporated certifies this product with rigorous testing to meet high-quality standards, providing confidence in its performance and durability.
