Product Overview: SMAJ11A-F from Diodes Incorporated

The SMAJ11A-F is a robust transient voltage suppressor (TVS) diode designed by Diodes Incorporated to provide high-quality circuit protection in a compact package. This TVS diode is specifically engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and electrostatic discharge (ESD). With its fast response time and low incremental surge resistance, the SMAJ11A-F is an ideal choice for safeguarding high-speed data lines and I/O interfaces.

Key Features

• Stand-off Voltage: The SMAJ11A-F offers a stand-off voltage of 11V, making it suitable for a variety of applications that require this specific level of voltage protection.
• Peak Pulse Power: It can handle a peak pulse power of 400W for 10/1000μs waveforms, providing a high degree of protection against surge events.
• Clamping Voltage: In the event of a voltage spike, the SMAJ11A-F clamps at a maximum voltage of 18.2V, ensuring that the protected components are not exposed to damaging high voltages.
• Low Leakage Current: This diode features a low leakage current, minimizing power loss and ensuring efficiency in normal operation.
• Fast Response Time: The device reacts almost instantaneously to transient voltage changes, offering immediate protection to sensitive circuits.
• Operating Temperature Range: The SMAJ11A-F operates effectively within a temperature range of -55°C to 150°C, accommodating a wide range of environmental conditions.

Applications

The SMAJ11A-F is versatile and can be used in various applications, including:

• Consumer electronics such as smartphones, tablets, and laptops
• Industrial systems with sensitive microcontroller or sensor circuits
• Networking devices like routers and switches that require reliable data line protection
• Automotive electronics where durability and reliability are paramount
• Power supply units where surge protection is critical

Package and Quality Assurance

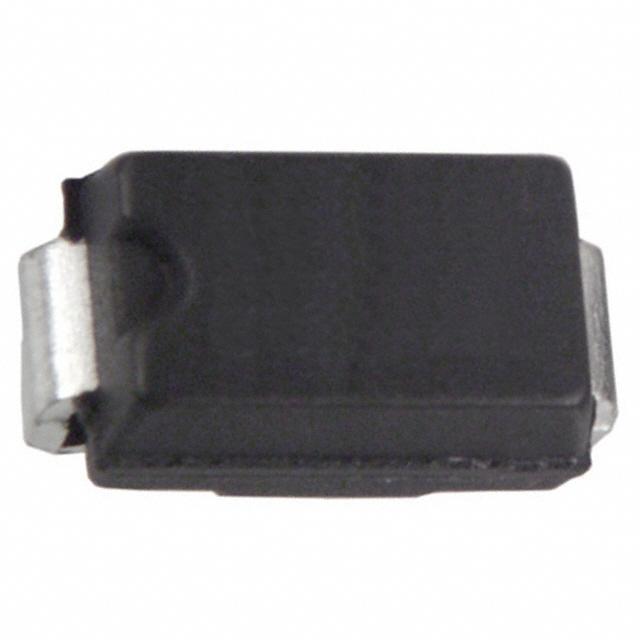

The SMAJ11A-F comes in a low-profile SMA (DO-214AC) package, optimized for automated assembly processes and known for its good thermal performance. Diodes Incorporated ensures that each device meets rigorous quality standards, providing reliable protection for your electronic designs.

With its combination of features, the SMAJ11A-F from Diodes Incorporated stands out as a superior choice for designers looking to enhance the durability and longevity of their electronic products.
