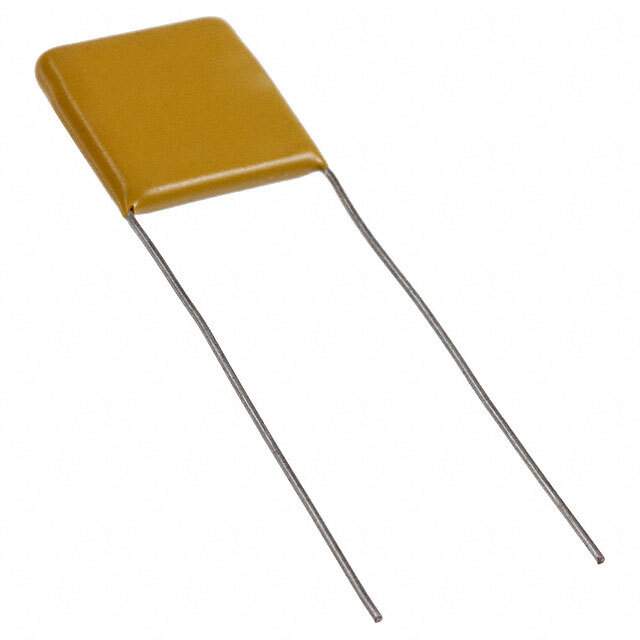

SV09KC183KAA Real Image
Same model may have multiple batches, images only for reference.

SV09KC183KAA

Part No SV09KC183KAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV09KC183KAA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 0.018 µF
Tolerance ±10%
Voltage - Rated 5000V (5kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.770" L x 0.270" W (19.56mm x 6.86mm)
Height - Seated (Max) 0.720" (18.30mm)
Lead Spacing 0.675" (17.14mm)
Lead Style Straight
Other Names Q7580327
Standard Package 50
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302965-SV09KC183KAA
Ultra Librarian 3D Model Ultra Librarian SV09KC183KAA CAD Model

Description

The KYOCERA AVX 1302965-SV09KC183KAA is a ceramic capacitor that belongs to the SV series of capacitors.

  • Manufacturer: KYOCERA AVX
  • Series: SV
  • Capacitance: 0.018 µF
  • Voltage Rating: 5000V (5kV)
  • Application: General-Purpose
  • Height (Seated): 0.720" (18.30mm)
  • Supplier: Win Source
  • Supply and Demand: Balanced
