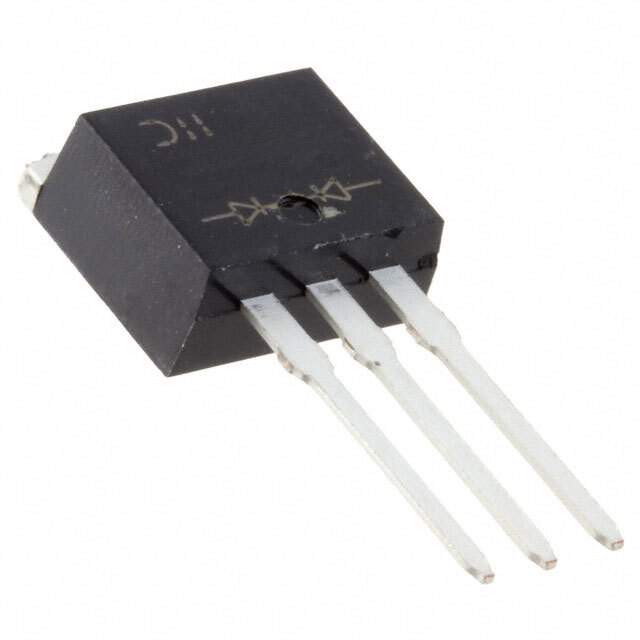

Product Overview: SDT40A100CTE from Diodes Incorporated

The SDT40A100CTE is a high-performance Schottky barrier rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This device is engineered to provide efficient power management solutions for a wide array of electronic applications, including power supplies, inverters, and DC-DC converters.

Key Features

• Low Forward Voltage Drop: The SDT40A100CTE boasts a low forward voltage drop, which enhances its efficiency by reducing power loss during operation.
• High Current Capability: With a forward continuous current rating of 40A, this rectifier can handle high current demands, making it suitable for power-intensive applications.
• Dual Rectifier Configuration: This device integrates two diodes in a common cathode configuration, providing flexibility in circuit design and saving board space.
• PowerDI5060-8 Package: Encased in a PowerDI5060-8 package, the SDT40A100CTE offers a compact footprint along with excellent thermal performance.
• High-Temperature Operation: It is capable of operating at junction temperatures ranging from -55°C to +150°C, ensuring reliability across various temperature environments.

Applications

The SDT40A100CTE is versatile and can be used in a multitude of applications where efficiency and thermal performance are critical. Some of the common applications include:

• Switching power supplies
• Adapters and chargers
• DC-DC converters
• Free-wheeling diodes in power converters
• Reverse battery protection circuits

Reliability and Quality

Diodes Incorporated is committed to delivering products that meet the highest standards of quality and reliability. The SDT40A100CTE is no exception, undergoing rigorous testing to ensure it meets the stringent requirements for industrial and commercial electronic devices.

Environmental Compliance

The SDT40A100CTE is RoHS compliant, reflecting Diodes Incorporated's dedication to environmental responsibility by eliminating the use of hazardous substances in its products.

With its combination of efficiency, high current capability, and robust thermal performance, the SDT40A100CTE from Diodes Incorporated stands out as an excellent choice for designers looking to enhance the performance and reliability of their power management systems.
