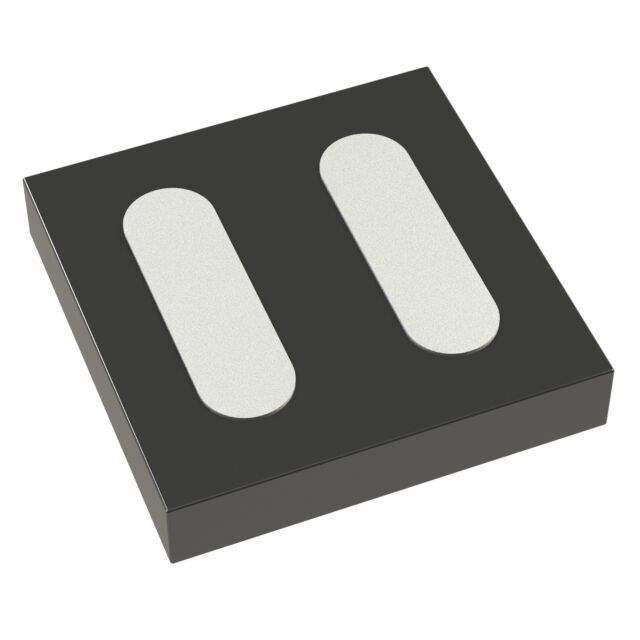

SDM5U45EP3-7Diodes Incorporated
Same model may have multiple batches, images only for reference.

SDM5U45EP3-7

Part No SDM5U45EP3-7
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOT 45V X3-TSN1616-2 T&R
Datasheet
SDM5U45EP3-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products> Diodes Rectifiers >Single Diodes
Part Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 580 mV @ 5 A
Current - Reverse Leakage @ Vr 140 µA @ 45 V
Capacitance @ Vr, F 189pF @ 5V, 1MHz
Supplier Device Package X3-TSN1616-2
Operating Temperature - Junction -55°C ~ 150°C
Speed Fast Recovery =< 500ns, > 200mA (Io)
Win Source Part Number WS1310109-SDM5U45EP3-7
Ultra Librarian 3D Model Ultra Librarian SDM5U45EP3-7 CAD Model

Description

The SDM5U45EP3 is a 45V 5A Schottky Barrier Rectifier that is optimized for low forward voltage drop and low leakage current, housed in a small surface mount package that occupies only 2mm2 board space with very low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency while at the same time reducing board space. It is ideally suited for use in portable applications such as:

● Blocking Diode ●  Boost Diode ●  Switching Diode ●  Reverse Protection Diode
