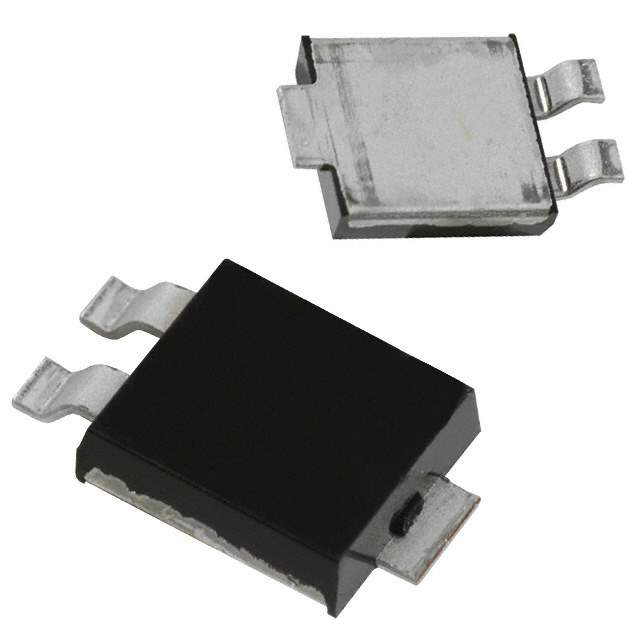

The SBM540-13 is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated. This rectifier is engineered to meet the stringent requirements of today's high-efficiency electronic devices. It is housed in a robust SMB package, which ensures a compact footprint while providing excellent thermal performance.

Key Features

• High Current Capability: The SBM540-13 is capable of conducting up to 5A of average rectified current, making it suitable for high current applications.
• Low Forward Voltage Drop: With a low forward voltage drop, this diode ensures minimal power loss and improved efficiency, which is critical for power-sensitive circuits.
• High Surge Capability: Its surge overload rating allows it to withstand high surge currents, providing reliable performance under transient conditions.
• Guard Ring Die Construction: The inclusion of a guard ring enhances the device's ruggedness and long-term reliability, especially in adverse conditions.

Applications

The SBM540-13 is versatile and can be used in a variety of applications, including:

• Power supply units
• DC-DC converters
• Automotive applications
• Free-wheeling diodes
• Polarity protection devices

Electrical Characteristics

With a maximum repetitive peak reverse voltage (VRRM) of 40V, the SBM540-13 is suitable for low voltage applications. Its operating junction temperature range from -55°C to +150°C ensures stability across a wide range of environmental conditions.

Quality and Compliance

Diodes Incorporated is committed to providing high-quality components. The SBM540-13 complies with RoHS and Green standards, ensuring that it meets global environmental and regulatory requirements. It is also supported by the company's rigorous testing and reliability standards, which customers have come to trust.

Ordering Information

The SBM540-13 is available for order in bulk quantities. For detailed ordering and pricing information, as well as advice on suitable applications, customers should contact Diodes Incorporated or an authorized distributor.
