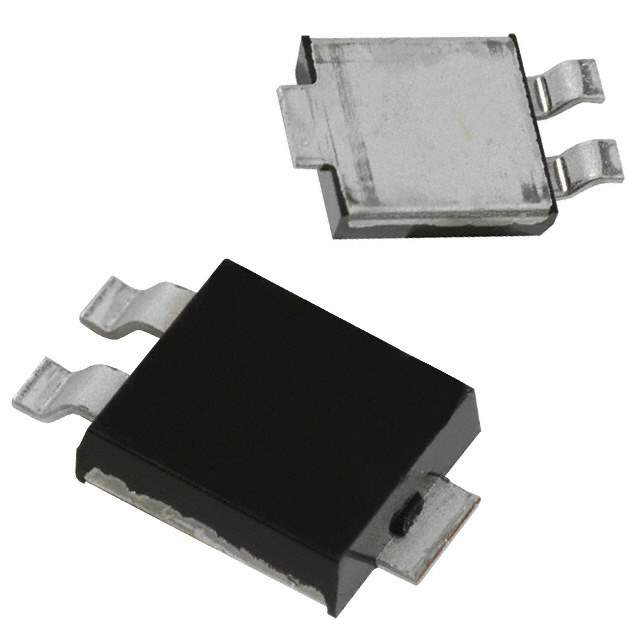

The SBM1040CT-13 is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This rectifier is specifically engineered for applications requiring low voltage drop and high efficiency. With its dual common-cathode configuration, it is ideal for use in high-frequency inverters, free-wheeling, and polarity protection applications.

Key Features

• High Current Capability: The SBM1040CT-13 supports a high forward surge current, making it suitable for applications with high transient currents.
• Low Forward Voltage Drop: The device ensures a low voltage drop across the diode, which enhances system efficiency and reduces thermal loss.
• High Frequency Operation: Designed for high-speed switching, this rectifier operates efficiently at high frequencies, which is essential for modern power supply designs.
• Thermal Performance: With its excellent thermal performance, the SBM1040CT-13 can maintain stability and reliability even under high temperature operating conditions.
• RoHS Compliant: This product complies with RoHS standards, ensuring that it is free from hazardous substances and environmentally friendly.

Applications

• Power supply units
• DC-DC converters
• Automotive applications
• Free-wheeling diodes in converters and motor control circuits
• Reverse battery protection

Specifications

Parameter Value Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Maximum Repetitive Reverse Voltage 40V Average Rectified Current 10A Peak Forward Surge Current 150A Operating Junction Temperature Range -55°C to +150°C

The SBM1040CT-13 stands out for its robustness and versatility, making it a preferred choice for engineers and designers looking for a reliable rectifier solution. Its compact form factor combined with its superior electrical characteristics ensures it can be integrated into a wide range of electronic systems with confidence.
