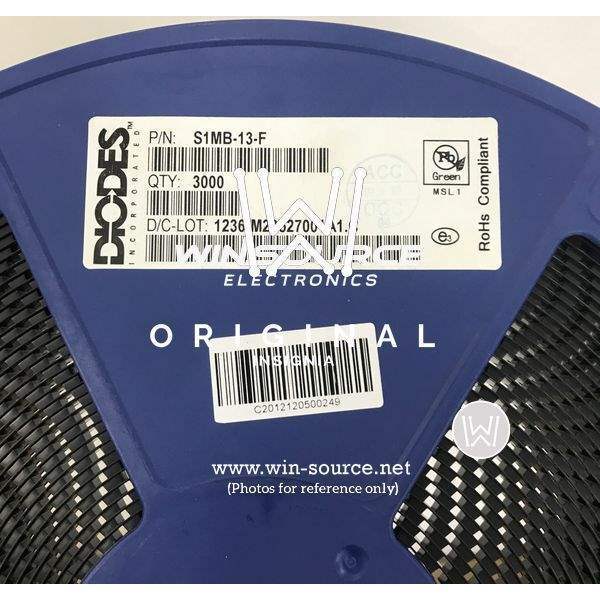

Product Overview: S1MB-13-F from Diodes Incorporated

The S1MB-13-F is a robust and efficient rectifier diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This component is part of the S1M series and is encapsulated in a SMB (DO-214AA) package, which offers a compact footprint suitable for surface-mount technology (SMT) applications.

Key Features

• Voltage Range: The S1MB-13-F is designed to handle a maximum repetitive reverse voltage of 1000V, making it suitable for high-voltage applications.
• Current Rating: With a forward current of 1.0A, this diode can manage moderate power requirements efficiently.
• High Surge Capability: It is capable of withstanding surge currents, ensuring reliability during transient conditions.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which reduces power loss and improves efficiency during conduction.
• Fast Switching Speed: The fast recovery time of the S1MB-13-F makes it an excellent choice for high-frequency rectification applications.
• Thermal Performance: The SMB package enhances thermal performance, providing better heat dissipation and contributing to the overall reliability of the device.

Applications

The S1MB-13-F is a versatile component that can be used in a variety of electronic circuits and products. Typical applications include:

• Power Supply Units (PSUs)
• Automotive systems
• Consumer electronics
• Telecommunication equipment
• Lighting systems
• Industrial machinery

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the S1MB-13-F is no exception. This product is constructed with high standards, ensuring that it meets or exceeds industry requirements for performance and reliability. The device is also RoHS compliant, meaning it adheres to strict environmental regulations by avoiding the use of hazardous substances.

Overall, the S1MB-13-F is a reliable and cost-effective choice for designers who require a high-voltage, surface-mount diode with fast switching speeds and a compact form factor. Whether in commercial or industrial settings, this diode is engineered to deliver consistent performance and longevity.
