Introducing the PI5A4158ZAEX from Diodes Incorporated

The PI5A4158ZAEX is a high-performance, precision analog switch from Diodes Incorporated, designed to deliver outstanding signal integrity and switching accuracy. With its compact package and robust design, this product is an ideal solution for a variety of applications that require efficient signal routing and manipulation.

Key Features

• Single Supply Operation: The PI5A4158ZAEX operates on a single power supply ranging from 2.3V to 5.5V, making it versatile for both portable and stationary applications.
• Low On-Resistance: Featuring an exceptionally low on-resistance (Ron) of typically 0.8 ohms, this analog switch ensures minimal signal distortion and power loss, providing a clear and reliable signal path.
• High Off Isolation: With excellent off isolation characteristics, the PI5A4158ZAEX minimizes crosstalk, thereby preserving signal fidelity in complex circuits.
• Low Crosstalk: The device's design ensures low crosstalk between channels, which is critical for applications where signal integrity is paramount.
• Fast Switching Speed: The switch features fast turn-on and turn-off times, allowing for high-speed operation without sacrificing performance.
• Wide Operating Temperature Range: This switch can operate over a broad temperature range from -40°C to +85°C, ensuring reliability and functionality in extreme conditions.

Applications

The PI5A4158ZAEX is suitable for a wide range of applications, including but not limited to:

• Audio and Video Signal Routing
• Data Acquisition Systems
• Communication Systems
• Medical Equipment
• Test and Measurement Instruments

Package and Quality

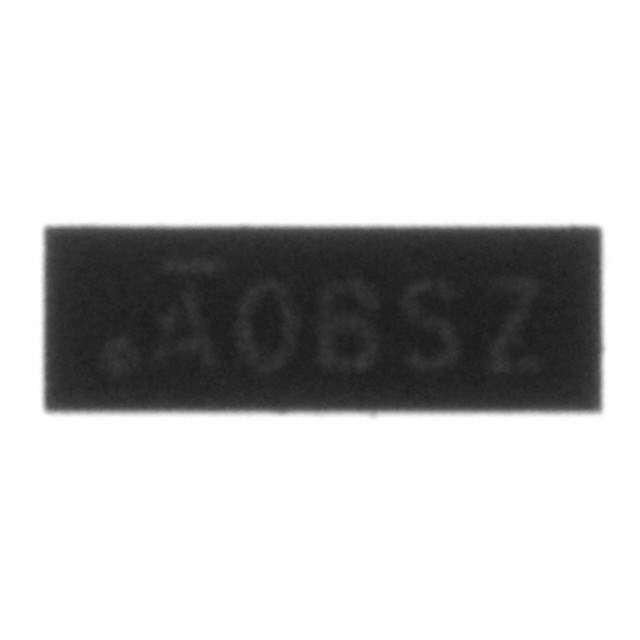

Encased in an ultra-small X2-DFN1410-6 package, the PI5A4158ZAEX is designed for space-constrained applications. Its small footprint does not compromise on performance or durability. Furthermore, Diodes Incorporated is committed to the highest quality standards, ensuring that this analog switch meets rigorous industry specifications for performance and reliability.

Whether you're designing sophisticated audio equipment, precision measurement tools, or any other application that demands high-quality signal switching, the PI5A4158ZAEX from Diodes Incorporated is a choice that promises to deliver exceptional performance.
