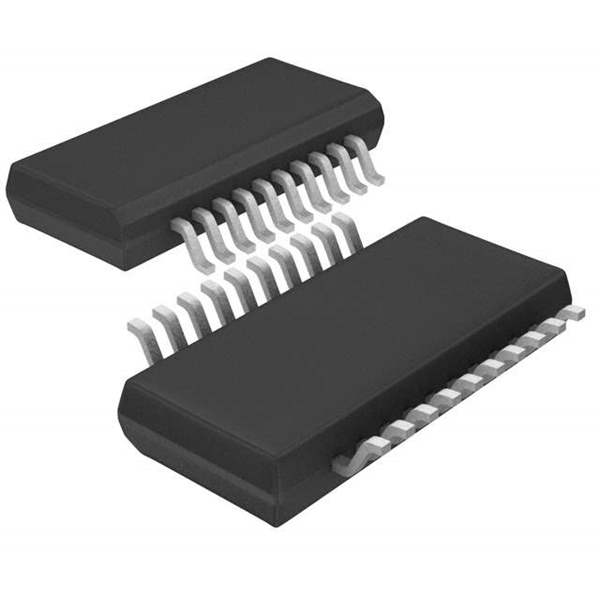

PI3VT3245-AQE

Part No PI3VT3245-AQE
Manufacturer Diodes Incorporated
Catalog Logic - Signal Switches, Multiplexers, Decoders
Description IC XLATR BUS SWITCH LV 20-QSOP / 8-Bit, 2-Port, Low Voltage Translator Bus Switch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Packaging Tube
Type Bus Switch
Independent Circuits 1
Voltage Supply Source Single Supply
Supply Voltage (V) 2.3V ~ 2.7V, 3V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 20-SSOP
Supplier Device Package 20-QSOP
Manufacturer Pack Quantity 55
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811301-PI3VT3245-AQE
Ultra Librarian 3D Model Ultra Librarian PI3VT3245-AQE CAD Model

Description

Diodes Incorporated PI3VT3245-AQE Product Overview

The PI3VT3245-AQE from Diodes Incorporated is a high-speed logic-level translator designed to address the needs of multi-voltage systems, such as mobile phones, PDAs, and other electronic devices. This bidirectional translator is part of the 3.3V CMOS logic family, making it suitable for interfacing between low-voltage 3.3V and 5V logic signals.

Key Features

  • Voltage Translation: The PI3VT3245-AQE is capable of translating 8-bit data between 3.3V and 5V logic levels, ensuring seamless communication between devices operating at different voltage levels.
  • High-Speed Operation: With a maximum data rate of 250 Mbps, this device is optimized for high-speed signal processing, making it an excellent choice for fast data transfer applications.
  • Low Power Consumption: It features a low-power design, which minimizes power usage, thereby extending battery life in portable applications.
  • Wide Operating Temperature Range: The device can operate over an industrial temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments.
  • ESD Protection: Equipped with ESD protection circuitry, the PI3VT3245-AQE safeguards against electrostatic discharge events that can damage electronic components.

Applications

The PI3VT3245-AQE is versatile and can be used in a variety of applications where logic level translation is required. Its primary uses include:

  • Interface translation in mixed-voltage systems
  • Signal bridging between 3.3V and 5V buses
  • Level shifting for microprocessors, microcontrollers, and peripheral devices

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the PI3VT3245-AQE is no exception. It is manufactured using the latest semiconductor processes, ensuring high reliability and performance consistency. Customers can trust this product to deliver excellent performance in their electronic designs.

Ordering Information

The PI3VT3245-AQE is available in a QSOP-20 package, providing a compact footprint for space-constrained applications. For detailed ordering and shipment information, customers should contact Diodes Incorporated or an authorized distributor.

Note: For complete technical specifications, please refer to the PI3VT3245-AQE datasheet.
