The PI3DBS16222ZLEX is a high-performance, PCIe 3.0 compliant, 2-lane, 2:2 multiplexer/demultiplexer switch designed by Diodes Incorporated. This advanced switch is optimized for applications requiring high-bandwidth data paths in a compact form factor. It is an ideal solution for a variety of platforms including desktops, laptops, workstations, servers, and embedded systems where expansion of PCIe lanes is necessary.

Key Features:

• PCIe 3.0 Compliance: The switch supports up to 8 GT/s data rate per lane, offering compatibility with the PCIe 3.0 specification and ensuring seamless integration with the latest generation of PCIe devices.
• Low Power Consumption: Designed with power efficiency in mind, the PI3DBS16222ZLEX minimizes power usage, making it suitable for power-sensitive applications.
• High Reliability: With its built-in ESD protection, the product ensures a high level of reliability and longevity, protecting the switch from electrostatic discharge events.
• Flexibility: The 2:2 configuration provides flexibility in connecting and switching between high-speed interfaces, allowing for efficient system design and optimization.
• Small Form Factor: The compact size of the PI3DBS16222ZLEX makes it a perfect choice for space-constrained applications, without compromising on performance.

Applications:

The PI3DBS16222ZLEX is versatile and can be used in a wide range of applications. Its primary use is in systems that require the expansion or switching of PCIe lanes to accommodate multiple devices or to re-route data paths for different operational modes. It is particularly useful in:

• Server and Enterprise Storage Systems
• Networking and Telecommunications Equipment
• High-Performance Computing Platforms
• Consumer Electronics
• Embedded Systems

Technical Specifications:

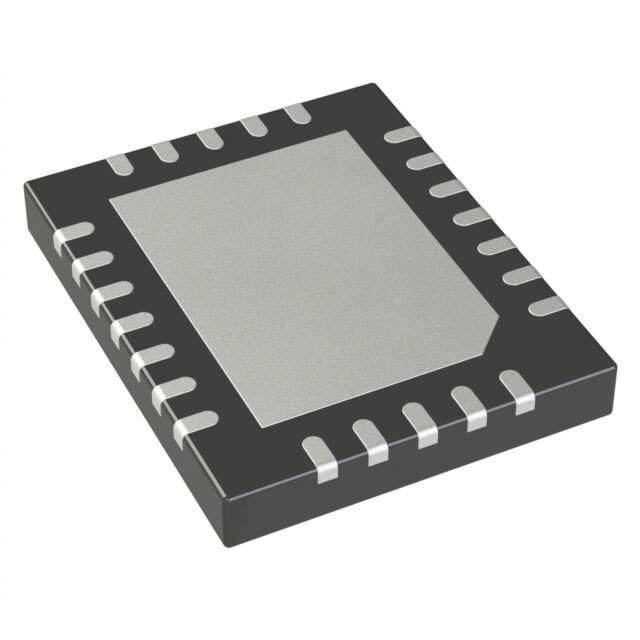

The switch operates over a wide temperature range and is available in a compact 42-contact TQFN package. It provides low bit-to-bit skew, low cross-talk, and high signal integrity, which are critical for maintaining the performance of high-speed data lanes.

Ordering Information:

To acquire the PI3DBS16222ZLEX or to learn more about its pricing and availability, interested parties should contact Diodes Incorporated or an authorized distributor. Technical documentation, including datasheets and support materials, are readily available for those who wish to delve deeper into the product's technical attributes.
