Introducing the PI3A2268ZMEX from Diodes Incorporated

The PI3A2268ZMEX is a cutting-edge, high-performance analog switch designed by Diodes Incorporated to meet the rigorous demands of modern electronic systems. This product is a testament to Diodes Incorporated's commitment to providing innovative solutions that enhance system reliability and efficiency.

At the heart of the PI3A2268ZMEX lies a dual single-pole, double-throw (SPDT) switch configuration that enables seamless signal routing within your circuit. This feature is particularly beneficial for applications requiring multiplexing or demultiplexing of analog or digital signals, providing versatility and flexibility in various use cases.

The device operates over a wide voltage range from 1.65V to 5.5V, making it compatible with many of today's low-voltage applications while also being able to interface with higher voltage systems. This broad compatibility ensures that the PI3A2268ZMEX can be integrated into a diverse array of designs without the need for additional level-shifting components, simplifying the design process and reducing the overall bill of materials.

One of the key features of the PI3A2268ZMEX is its low on-resistance, which typically stands at 0.5 Ohms. This characteristic minimizes signal distortion and ensures that the integrity of the signal is preserved as it passes through the switch. Additionally, the device boasts a high bandwidth, which allows it to handle high-speed signals without compromising performance, making it ideal for audio, video, and data communication applications.

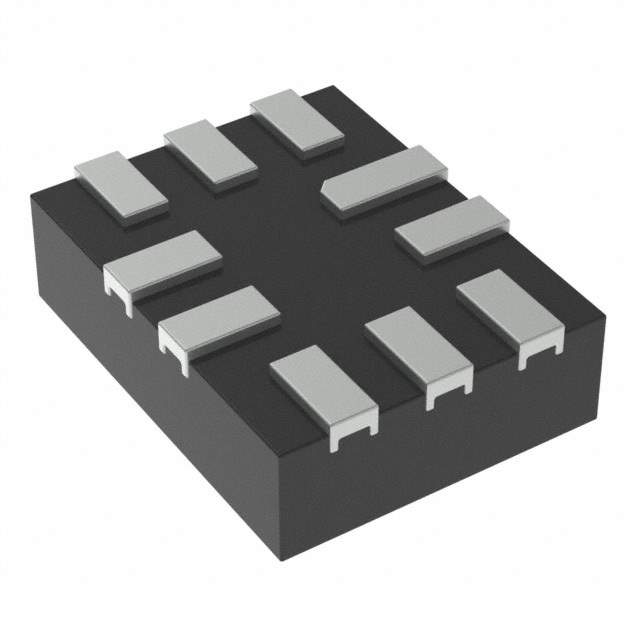

The PI3A2268ZMEX comes in a compact, space-saving UQFN-10 package, which is perfect for designs where board space is at a premium. The small footprint of the device, along with its excellent thermal performance, makes it a suitable choice for portable and space-constrained applications such as smartphones, tablets, and other personal electronic devices.

To ensure reliability, the PI3A2268ZMEX is built with ESD protection, safeguarding the device from electrostatic discharge events and providing a robust solution for sensitive applications. This protection, combined with the device's latch-up performance, exceeds 100mA per JESD78, ensuring that the PI3A2268ZMEX can withstand harsh operating conditions and maintain stable operation throughout its lifespan.

Whether you're designing consumer electronics, communication systems, or any other application requiring efficient and reliable signal switching, the PI3A2268ZMEX from Diodes Incorporated is an excellent choice that promises to deliver performance and quality.
