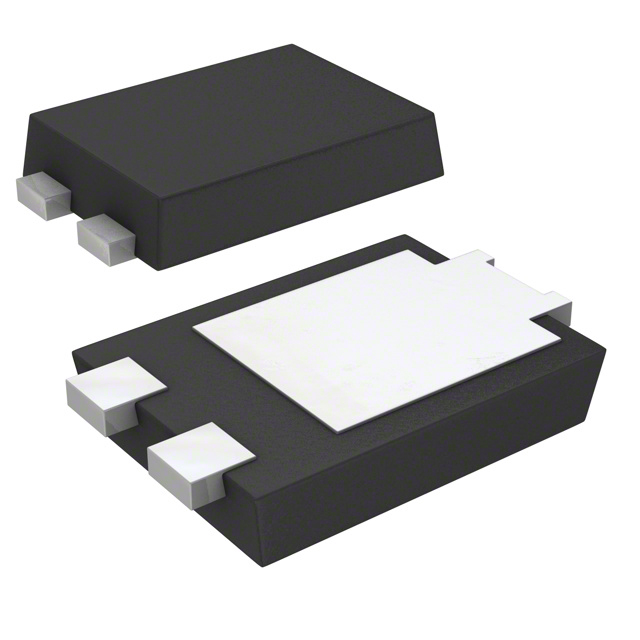

The PDS540Q-13 is a high-quality, surface-mount Schottky rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This rectifier is engineered to provide efficient, low voltage drop rectification in a variety of electronic applications. With its robust design and high reliability, the PDS540Q-13 is an ideal choice for high-frequency power supplies, polarity protection circuits, and power management systems.

Key Features

• Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances power efficiency and reduces thermal stress on the system.
• High Current Capability: With a forward continuous current of 5A, the PDS540Q-13 can handle high current applications with ease.
• Power Dissipation: It has a power dissipation of 3W, allowing it to manage significant power levels.
• High Surge Capability: The device is capable of withstanding high surge currents, ensuring reliability under stressful conditions.
• Temperature Range: The operating junction temperature range of -55°C to +150°C allows the rectifier to function in a wide range of environmental conditions.

Specifications

Parameter Value Package DO-214AB (SMC) Max Repetitive Reverse Voltage (V<sub>RRM) 40V Average Rectified Forward Current (I<sub>F(AV)) 5A Forward Voltage Drop (V<sub>F) 0.55V @ 5A Reverse Current (I<sub>R) 500μA @ 40V Operating Junction Temperature (T<sub>J) -55°C to +150°C

Applications

The PDS540Q-13 is versatile and can be used in various applications, such as:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters
• Automotive applications

With its exceptional performance and reliability, the PDS540Q-13 from Diodes Incorporated stands out as a top choice for designers looking for a Schottky rectifier that can deliver in demanding situations.
