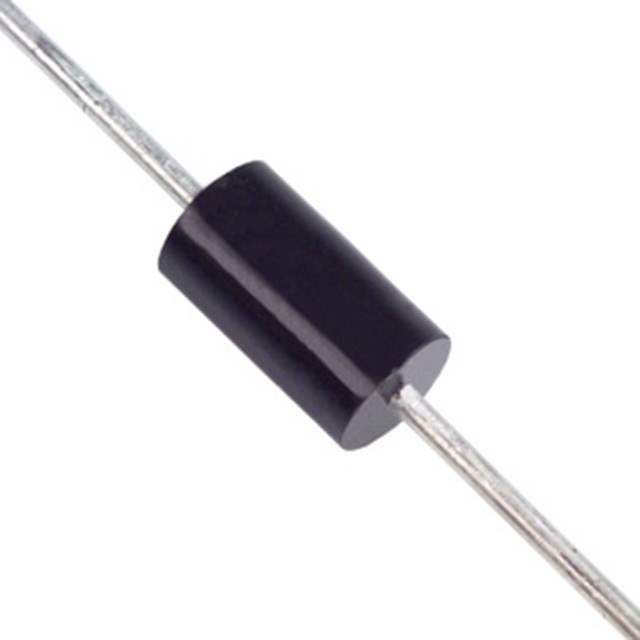

The MBR5200VPBTR-E1 from Diodes Incorporated is a robust and efficient Schottky barrier rectifier designed for high-frequency applications. This device is particularly suitable for use in power supplies, converters, free-wheeling diodes, and reverse battery protection circuits due to its low forward voltage drop and high surge current capability.

Key Features

• High Current Capability: The MBR5200VPBTR-E1 is capable of conducting up to 5A of average rectified current, making it suitable for high-current applications.
• Low Power Loss: With its Schottky barrier design, this diode has a low forward voltage drop, which translates to reduced power loss and improved efficiency in electronic circuits.
• High Surge Capability: The device can handle surge currents, ensuring reliability and robustness in applications subject to transient overcurrent conditions.
• High-Temperature Operation: The MBR5200VPBTR-E1 can operate at junction temperatures ranging from -65°C to 150°C, accommodating various environmental conditions.
• Package: It comes in a power package that is designed to optimize the thermal performance and minimize the footprint on the PCB.

Applications

• Switching power supplies
• DC-DC converters
• Free-wheeling diodes in motor control circuits
• Polarity protection devices
• Automotive applications

Product Specifications

The MBR5200VPBTR-E1 is a testament to Diodes Incorporated's commitment to providing high-quality, reliable semiconductor products. Whether you are designing power management systems or looking to improve efficiency in existing circuits, this Schottky barrier rectifier is an excellent choice.
