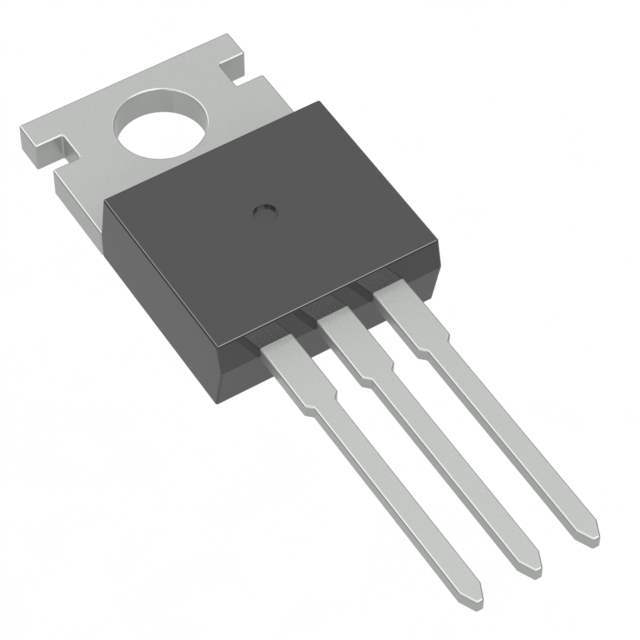

Same model may have multiple batches, images only for reference.
MBR20150SCT-G1Diodes Incorporated
Same model may have multiple batches, images only for reference.

MBR20150SCT-G1

Part No MBR20150SCT-G1
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARR SCHOT 150V 10A TO220-3
Datasheet
MBR20150SCT-G1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products >Diodes >Rectifiers Diode Arrays
Packaging  Tube
Part Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 A
Current - Reverse Leakage @ Vr 50 µA @ 150 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220-3
Win Source Part Number WS1310432-MBR20150SCT-G1
Ultra Librarian 3D Model Ultra Librarian MBR20150SCT-G1 CAD Model

Description

High voltage dual Schottky rectifier suited for switch mode power supplies and other power converters. This device is intended for use in medium voltage operation, and particularly, in high frequency circuits where low switching losses and low noise are required.

The MBR20150SC is available in TO-220-3 (2) and TO-220F-3 packages.
