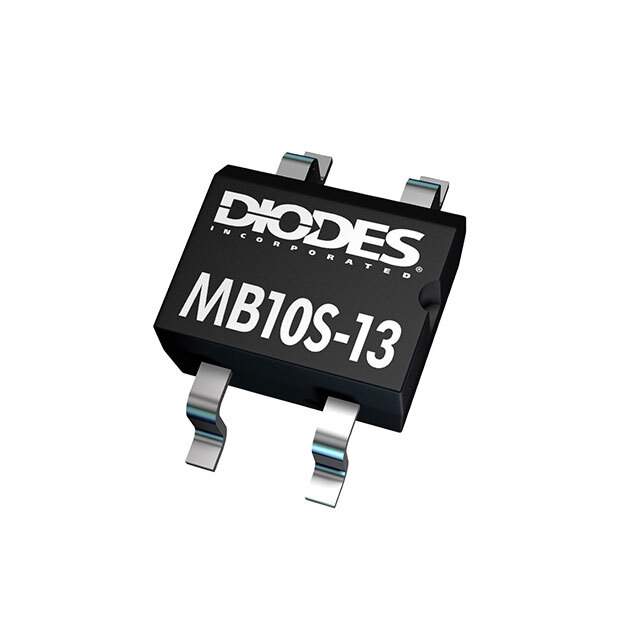

Diodes Incorporated MB10S-13 Bridge Rectifier

The MB10S-13 from Diodes Incorporated is a high-quality, single-phase, surface-mount bridge rectifier that is designed to convert an alternating current (AC) input into a direct current (DC) output. This tiny yet robust component is an essential part of power management in a wide range of electronic applications where efficient rectification is needed.

Key Features

• Compact Size: With its small footprint, the MB10S-13 is ideal for use in space-constrained applications. The device comes in a 4-pin SOP package, which allows for easy integration into various circuit designs.
• High Current Capability: This bridge rectifier can handle a high average rectified forward current of up to 0.5A (500mA), making it suitable for numerous small power supplies and other electronic devices.
• Peak Reverse Voltage: It has a peak repetitive reverse voltage (Vrrm) of 1000V, providing a good safety margin for applications with high voltage requirements.
• Low Forward Voltage Drop: The MB10S-13 features a low forward voltage drop, which enhances power efficiency by minimizing power loss during the rectification process.
• High Surge Current Capacity: This device can withstand surge overload ratings, ensuring reliable performance during transient conditions.
• RoHS Compliant: The MB10S-13 bridge rectifier is RoHS compliant, meaning it meets the restrictions on the use of certain hazardous substances in electrical and electronic equipment.

Applications

The MB10S-13 is versatile and can be used in a variety of applications, including:

• Power supplies for consumer electronics
• LED lighting systems
• Charging systems for batteries
• Adapters and on-board DC/DC converters
• Telecommunication devices

Its high reliability and efficiency make the MB10S-13 bridge rectifier an excellent choice for designers looking to create compact, energy-efficient power circuits. With its surface-mount design, the MB10S-13 is also well-suited for automated assembly processes, further streamlining the manufacturing of electronic devices.

Overall, the MB10S-13 by Diodes Incorporated is a testament to the company's commitment to providing high-quality components that meet the evolving needs of modern electronic equipment.
