Product Overview: Diodes Incorporated KBJ604G Bridge Rectifier

The KBJ604G is a high-quality bridge rectifier produced by Diodes Incorporated, a leading manufacturer in the semiconductor industry. This component is designed to offer efficient and reliable rectification for alternating current (AC) to direct current (DC) conversion in a wide array of electronic applications. The KBJ604G is especially suited for use in power supplies, adapters, lighting, and other electrical equipment that require a steady DC voltage.

Key Features

• Voltage Ratings: The KBJ604G is capable of rectifying an input of up to 600V, making it suitable for many medium to high voltage applications.
• Current Capacity: With a forward current rating of 6A, this bridge rectifier can handle a significant amount of current, ensuring compatibility with a variety of loads.
• High Surge Current Capability: The device can withstand high surge currents, which is critical for applications that experience short bursts of high current.
• Isolation Voltage: It features an isolation voltage of 2500V, which provides additional safety and reliability in electrical insulation.

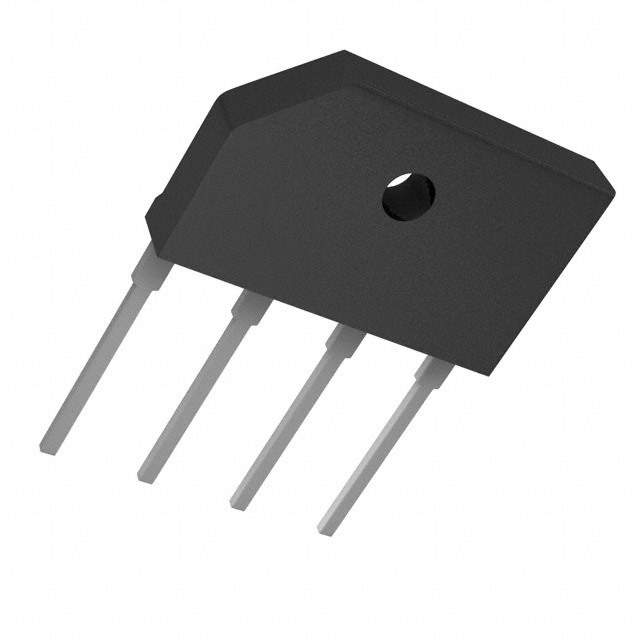

• Package: The KBJ604G comes in a KBJ package, which is known for its robustness and ease of mounting on printed circuit boards (PCBs).

Thermal and Mechanical Properties

The KBJ604G is designed with excellent thermal conductivity, allowing it to maintain optimal performance even under high temperature operations. Its sturdy package ensures mechanical durability, while its leads are plated with solderable material, facilitating easy soldering during assembly.

Applications

This bridge rectifier is versatile and can be used in a variety of applications. It is commonly found in:

• Switching power supplies
• Adapters and battery chargers
• Office machines and household appliances
• Telecommunication equipment
• Industrial automation systems

Quality and Reliability

Diodes Incorporated's commitment to quality ensures that the KBJ604G meets high standards for reliability and performance. It is designed to provide a long operational life, making it a trusted choice for manufacturers and engineers seeking a dependable bridge rectifier solution.
