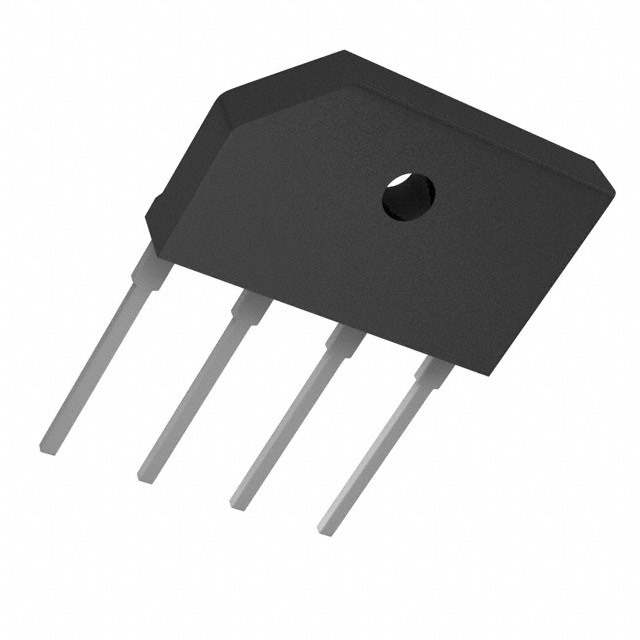

The KBJ406G is a robust single-phase bridge rectifier from Diodes Incorporated, designed to deliver efficient and reliable performance in a variety of AC to DC conversion applications. This electronic component is engineered to provide a high surge current capability, making it an ideal choice for power supply operations in consumer electronics, industrial systems, and telecommunication devices.

Key Features

• Rectifier Configuration: Single-phase bridge
• Peak Reverse Voltage (PRV): 600V
• Maximum RMS Voltage: 420V
• Average Forward Rectified Output Current: 4A at TA = 50°C
• High surge current capability: 150A
• Forward Voltage Drop: 1.0V at 4A
• Isolation Voltage: 2500V
• Operating Junction Temperature: -55°C to +150°C
• Package: KBJ
• RoHS compliant and lead-free

Applications

With its high surge handling capacity and reliability, the KBJ406G is suitable for a wide array of applications, including:

• Switching power supplies
• Adapters
• On-board DC/DC converters
• Lighting applications
• Motor controllers

Quality and Environmental Compliance

Diodes Incorporated is committed to providing environmentally friendly products that meet the highest standards of quality. The KBJ406G bridge rectifier is RoHS compliant, ensuring that it is free from hazardous substances commonly found in electronic components. Additionally, it is manufactured to be lead-free, making it suitable for use in various global markets that have strict environmental regulations.
