The GBJ1004 from Diodes Incorporated is a robust bridge rectifier that is designed to convert alternating current (AC) input into direct current (DC) output. This essential electronic component is widely used in a variety of power supply applications where efficient rectification is required.

Key Features

• High Current Capability: The GBJ1004 is capable of handling a high average forward rectified current of up to 10A, making it suitable for high-power applications.
• High Surge Current Capability: With its ability to withstand surge currents, this bridge rectifier can manage temporary overloads effectively, ensuring reliable performance during power spikes.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances its efficiency by minimizing power loss during the rectification process.
• Isolation Voltage: It offers a high isolation voltage of 1500V, which provides additional safety and reliability in electrical isolation between input and output.

Electrical Characteristics

The GBJ1004 has a repetitive peak reverse voltage (VRRM) of 400V, which is suitable for a wide range of applications that do not exceed this voltage. Its operating junction temperature ranges from -55°C to +150°C, allowing it to perform reliably in various environmental conditions.

Applications

This bridge rectifier is commonly used in:

• Power supplies for consumer electronics
• LED lighting applications
• Adapters and battery chargers
• Office machines and home appliances
• Telecommunication equipment

Package and Mounting

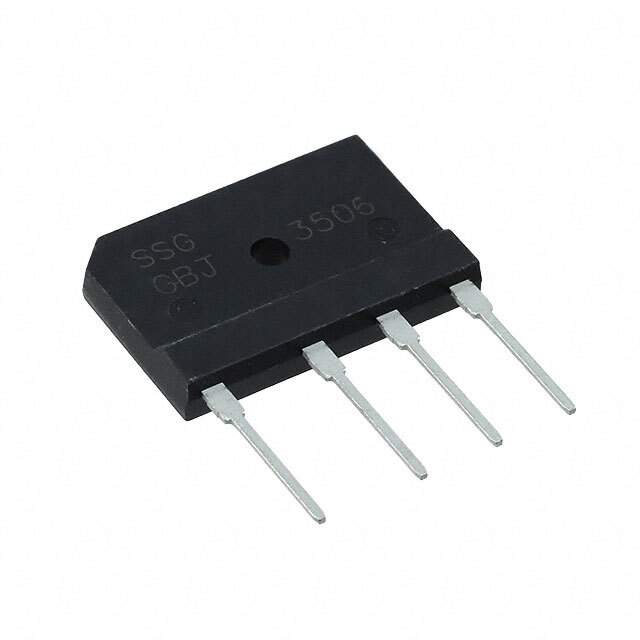

The GBJ1004 is provided in a GBJ package, known for its square shape and through-hole mounting style. This makes it easy to install on printed circuit boards for various electronic devices.

Quality and Standards

Diodes Incorporated ensures that the GBJ1004 meets the highest quality and reliability standards. This component is RoHS compliant, meaning it adheres to the restrictions on the use of certain hazardous substances in electrical and electronic equipment.

With its combination of high current capability, surge robustness, and efficient operation, the GBJ1004 is an excellent choice for designers looking for a reliable bridge rectifier for their power conversion needs.
