DMP4047LFDE-7

Part No DMP4047LFDE-7
Manufacturer Diodes Incorporated
Catalog FETs - Single
Description 0.6mm profile – ideal for low profile applications | MOSFET P-CH 40V 3.3A U-DFN2020
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel
Transistor Polarity P-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 40V
Id - Continuous Drain Current 3.3A
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Maximum) at Id, Vgs 33mOhm at 4.4A, 10V
Gate Source Voltage(th) (Maximum) at Id 2.2V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 23.2nC at 10V
Gate Source Voltage (Maximum) ±20V
Input Capacitance (Ciss) (Maximum) at Vds 1382pF at 20V
Power Dissipation (Maximum) 700mW
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD

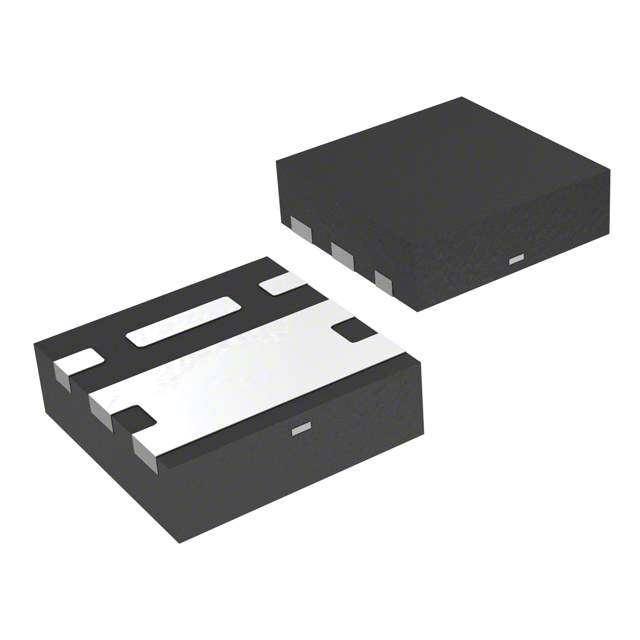

Supplier Device Package U-DFN2020-6 (Type E)
Manufacturer Package 6-UDFN Exposed Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 718229-DMP4047LFDE-7
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DMP4047LFDE-7 CAD Model

Description

Introducing the DMP4047LFDE-7 P-Channel MOSFET by Diodes Incorporated

Diodes Incorporated, a leading manufacturer in high-quality semiconductor products, presents the DMP4047LFDE-7, a robust P-Channel enhancement mode MOSFET designed for power management applications. This compact and efficient power MOSFET is an ideal solution for a range of electronic devices, offering low on-resistance and high thermal performance.

Key Features:

  • Low On-Resistance (RDS(on)): The DMP4047LFDE-7 boasts an impressively low on-resistance, which translates to reduced conduction losses and enhanced efficiency in your applications.
  • High Power Dissipation: With a power dissipation of 3.1W, this MOSFET can handle significant power, making it suitable for high-power operations.
  • Advanced Packaging: Encased in a PowerDI® 3333-8 package, the DMP4047LFDE-7 is not only space-saving but also provides excellent thermal resistance, ensuring reliable operation even under high-temperature conditions.
  • Voltage and Current Ratings: The device supports a drain-source voltage (VDS) of -40V and a continuous drain current (ID) of -12A, which is indicative of its robust power handling capabilities.

Applications:

The DMP4047LFDE-7 is versatile and can be used in a variety of applications, including but not limited to:

  • Power supply circuits
  • DC/DC converters
  • Load switches
  • Battery management systems
  • Motor control circuits

Quality and Reliability:

Diodes Incorporated is committed to delivering products that meet the highest standards of quality and reliability. The DMP4047LFDE-7 is no exception and is manufactured with the industry's best practices, ensuring that it performs consistently across various conditions and applications.

Environmental Compliance:

Understanding the importance of environmental sustainability, the DMP4047LFDE-7 is RoHS compliant, meaning it is manufactured without the use of hazardous substances. This commitment to environmental responsibility not only helps protect the planet but also ensures that the MOSFET can be used in products marketed globally.

With its combination of efficiency, power handling, and compact form factor, the DMP4047LFDE-7 from Diodes Incorporated stands out as a superior choice for designers looking to optimize their power management systems.
