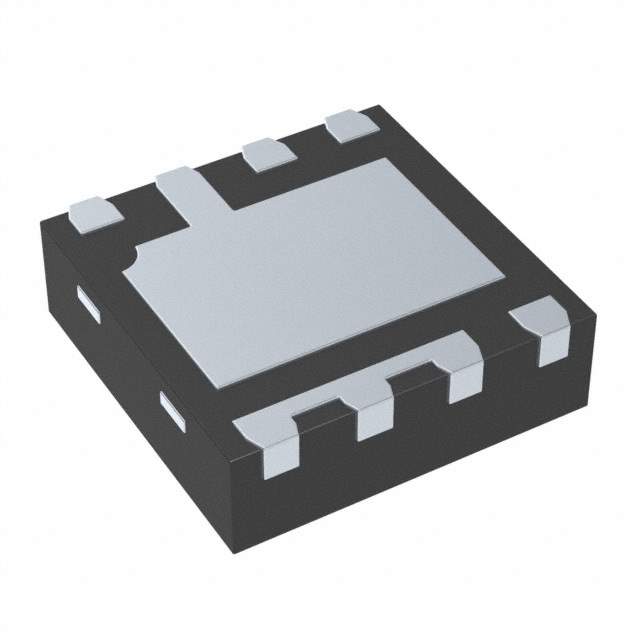

Product Overview: DML1010FDK-7

The DML1010FDK-7 is a high-performance, dual N-channel enhancement mode field-effect transistor (FET) from Diodes Incorporated, a global manufacturer and supplier of high-quality semiconductor products. This device is part of the extensive MOSFET product line that Diodes Incorporated offers for various electronic applications.

Key Features

• Low On-Resistance: The DML1010FDK-7 features a low on-resistance, which minimizes conduction losses and improves overall efficiency, making it suitable for power management applications.
• High-Speed Switching: Designed for fast switching applications, this MOSFET can operate at higher frequencies, which is ideal for modern high-speed circuit designs.
• Low Threshold Voltage: With a low gate threshold voltage, this device can be driven at lower voltages, thus reducing the power needed for switching, and is compatible with logic-level circuits.
• Compact Package: Housed in a small form factor SOT-363 package, the DML1010FDK-7 saves valuable board space and is suitable for compact electronic designs.

Applications

The DML1010FDK-7 is versatile and can be used in a wide range of applications, including:

• Power Management Circuits
• DC-DC Converters
• Battery Management Systems
• Load Switches
• Motor Control
• Portable Electronic Devices

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability. The DML1010FDK-7 is manufactured with this commitment in mind, ensuring that it meets the stringent requirements of the electronics industry. This product is RoHS compliant and is designed to withstand the demands of modern electronic devices.

Technical Specifications

Below are some of the key technical specifications of the DML1010FDK-7:

• Drain-Source Voltage (V_DS): 20V
• Continuous Drain Current (I_D): 0.54A
• Power Dissipation (P_D): 200mW
• Operating Temperature Range: -55°C to +150°C

For detailed specifications and application notes, customers are encouraged to review the DML1010FDK-7 datasheet available on the Diodes Incorporated website or contact their sales representative.
