The DCX115EK-7-F from Diodes Incorporated is a high-performance, precision NPN bipolar junction transistor (BJT) that offers a versatile solution for a wide range of electronic applications. This discrete semiconductor product is designed to deliver reliable and efficient performance for switching and amplification tasks in circuit designs.

Key Features:

• Transistor Polarity: NPN - suitable for amplification and switching applications.
• Collector-Emitter Voltage (VCEO): The product can handle a maximum collector-emitter voltage of 40V, providing a good margin for various electronic circuits.
• Collector Current (IC): It supports a continuous collector current up to 200mA, making it suitable for moderate power applications.
• Power Dissipation (Pd): With a power dissipation of 300mW, it can sustain moderate thermal conditions without compromising performance.
• DC Current Gain (hFE): The device features a high DC current gain, ensuring efficient current amplification in electronic circuits.

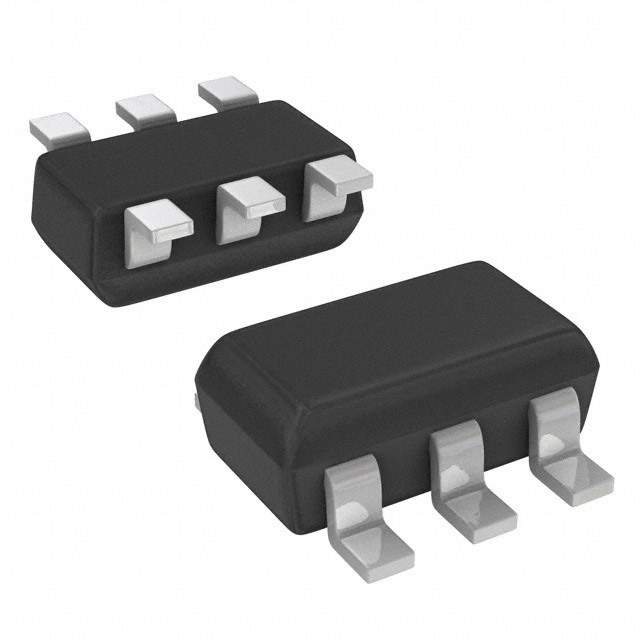

• Package / Case: The DCX115EK-7-F comes in a compact SOT-523 package, which is ideal for space-constrained applications.
• Operating Temperature Range: It has an operating temperature range from -55°C to +150°C, allowing usage in various environmental conditions.
• RoHS Compliant: The device is RoHS compliant, ensuring it meets the environmental standards by restricting the use of certain hazardous substances in electrical and electronic equipment.

Applications:

The DCX115EK-7-F is a versatile component that can be utilized in a diverse range of applications. It is commonly used in:

• Signal amplification in audio and communication devices.
• Power management modules.
• Switching circuits in consumer electronics.
• Drive circuits for motors and relays.
• Linear amplification in analog circuits.

With its robust design and high reliability, the DCX115EK-7-F is an excellent choice for designers seeking a transistor that delivers consistent performance with a long operational lifespan. Diodes Incorporated's commitment to quality ensures that this product meets the stringent requirements of the electronics industry.
