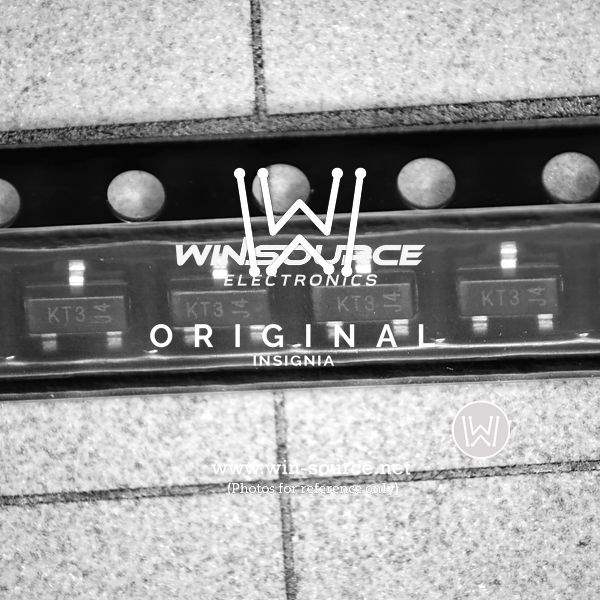

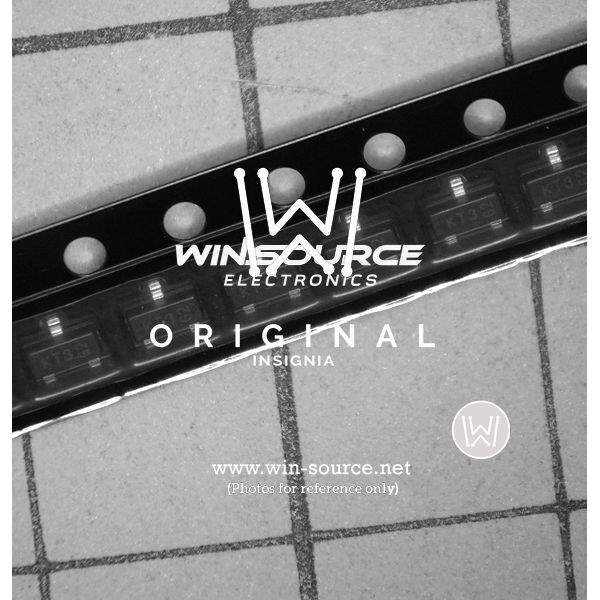

BAS21-7-F

Part No BAS21-7-F
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 200MA SOT23 / Rectifier Diode Small Signal Switching 250V 0.4A 50ns 3-Pin SOT-23 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 200mA
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 100nA @ 200V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOT-23-3
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 010892-BAS21-7-F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Family Name BAS21
Introduction Date October 30, 1997
ECCN EAR99
Country of Origin China, Japan, Taiwan, United Kingdom, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BAS21-7-F CAD Model

Description

The BAS21-7-F from Diodes Incorporated is a high-speed switching diode that offers excellent performance for a wide range of applications. This small signal diode is designed to deliver fast switching speeds with a low forward voltage drop, making it an ideal choice for high-efficiency designs.

Key Features:

  • Fast Switching Speed: The BAS21-7-F is engineered for quick transitions, allowing for efficient operation in high-frequency circuits.
  • Low Forward Voltage Drop: With a low forward voltage drop, this diode helps to minimize power loss and improve overall system efficiency.
  • High Reverse Voltage: It can withstand reverse voltages up to 250V, providing robust performance in demanding situations.
  • Surface-Mount Package: The SOT-23 package is compact and suitable for automated assembly processes, making it a convenient choice for mass production.
  • Lead-Free and RoHS Compliant: The BAS21-7-F complies with environmental regulations, including RoHS, and is free from lead and other hazardous substances.

Applications:

The versatility of the BAS21-7-F makes it suitable for a variety of applications, including:

  • High-speed switching in digital circuits
  • Logic gates and inverters
  • Power management systems
  • Charge and discharge circuits for capacitors
  • Voltage clamping applications

Technical Specifications:

Parameter Value Reverse Voltage (V<sub>R) 250V Forward Current (I<sub>F) 200mA Forward Voltage (V<sub>F) 1.25V @ 100mA Reverse Recovery Time (t<sub>rr) 50ns Operating Temperature Range -55°C to +150°C

The BAS21-7-F is a testament to Diodes Incorporated's commitment to providing high-quality, reliable components for modern electronic systems. Its combination of speed, efficiency, and robustness makes it a smart choice for designers looking to optimize their high-speed switching applications.
