Introducing the B240AF-13 Rectifier from Diodes Incorporated

The B240AF-13 is a high-quality Surface Mount Schottky Barrier Rectifier that offers efficient and reliable performance for a wide range of applications. Manufactured by Diodes Incorporated, a leading company in the semiconductor market, this rectifier is designed to meet the needs of modern electronic equipment.

Key Features

• Low Forward Voltage Drop: The B240AF-13 boasts a low forward voltage drop, which enhances power efficiency and reduces thermal stress on the device, making it ideal for high-frequency applications.
• High Current Capability: With a maximum average rectified current of 2A, this rectifier can handle significant current loads, making it suitable for power supply operations and other demanding tasks.
• High Surge Capability: The device is capable of withstanding high surge currents, ensuring durability and reliability even under stressful conditions.

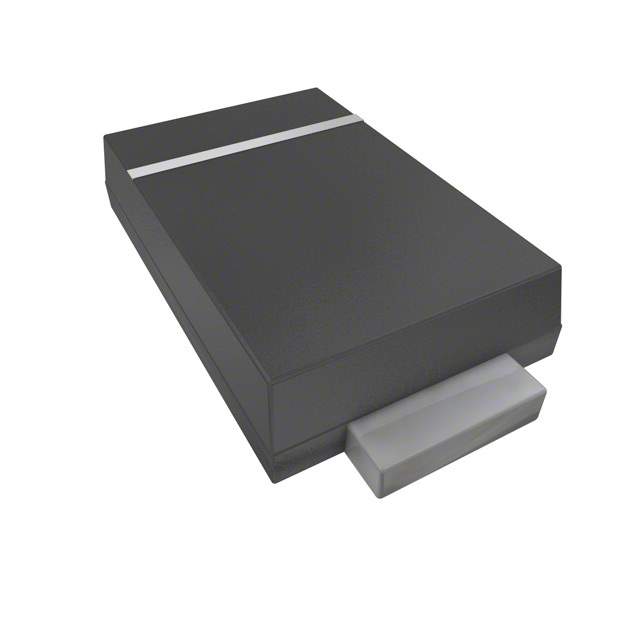

• Surface Mount Package: The B240AF-13 comes in an SMB package, which is ideal for automated assembly processes and helps in saving board space in compact electronic designs.
• Lead-Free and RoHS Compliant: This product is environmentally friendly as it is lead-free and complies with the RoHS directive, making it a responsible choice for electronic manufacturers.

Applications

The B240AF-13 is versatile and can be used in various applications, including:

• Power supply units
• DC-DC converters
• Free-wheeling diodes in converters and motor control circuits
• Reverse battery protection
• Automotive applications
• Portable devices and battery charging circuits

Technical Specifications

The B240AF-13 has a maximum repetitive peak reverse voltage of 40V and a forward continuous current of 2A. Its operating junction temperature ranges from -55°C to +150°C, which ensures stable performance across a wide thermal spectrum.

In summary, Diodes Incorporated's B240AF-13 is a robust and efficient solution for engineers looking to integrate a reliable rectifier into their designs. Its compact footprint, combined with its high performance and compliance with environmental standards, makes it an excellent choice for a multitude of electronic applications.
