APX803L05-29SR-7 - Voltage Supervisor IC by Diodes Incorporated

The APX803L05-29SR-7 is a highly precise voltage supervisor IC designed by Diodes Incorporated to monitor the voltage levels in digital systems and ensure that the system voltage remains within acceptable limits. This compact component is essential for applications that require reliable operation and protection against voltage fluctuations.

Key Features:

• Supply Voltage Monitoring: The IC is capable of supervising a 5V power supply with a threshold voltage of 2.93V, providing a high level of accuracy in monitoring.
• Low Power Consumption: It is designed for low power operation, which makes it suitable for battery-powered and portable devices.
• Reset Timeout Delay: The APX803L05-29SR-7 features a built-in fixed delay time of 240ms (minimum), ensuring that the system has sufficient time to stabilize before it resumes operation after a voltage dropout.
• Output Type: This IC provides an active-low, open-drain reset output, which allows for easy interfacing with other logic components.
• Temperature Range: It operates over an industrial temperature range from -40°C to +85°C, catering to a wide variety of environments and applications.

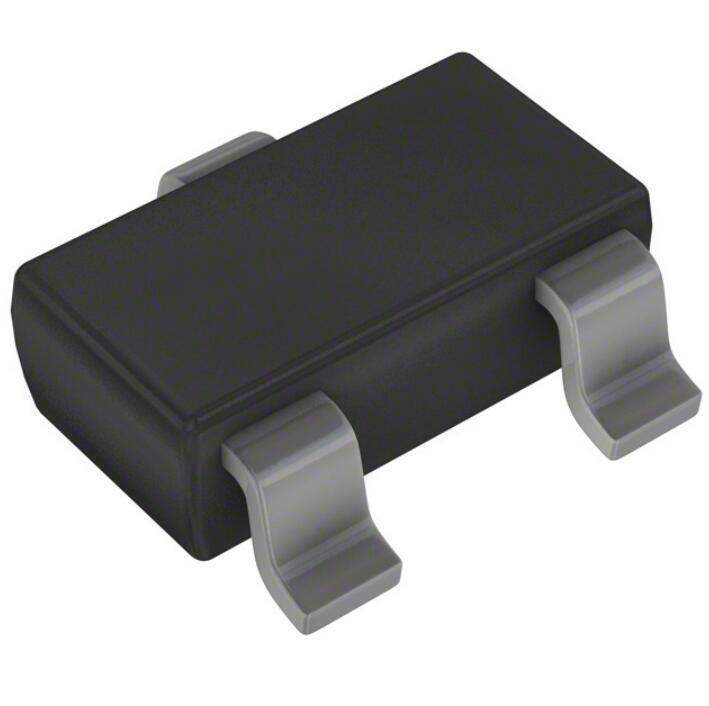

• Package: The device comes in a compact SOT-23 package, which is ideal for space-constrained applications.

Applications:

The APX803L05-29SR-7 voltage supervisor is suitable for a wide range of applications, including:

• Microprocessor, microcontroller, and DSP systems
• Portable and battery-powered equipment
• Industrial controls
• Notebook computers
• Embedded systems

With its precise voltage monitoring and low power consumption, the APX803L05-29SR-7 from Diodes Incorporated is an excellent choice for designers looking to enhance system reliability and protect against undesirable system behavior due to voltage anomalies. Its small form factor and robust operation make it a versatile component in any circuit requiring voltage supervision.
