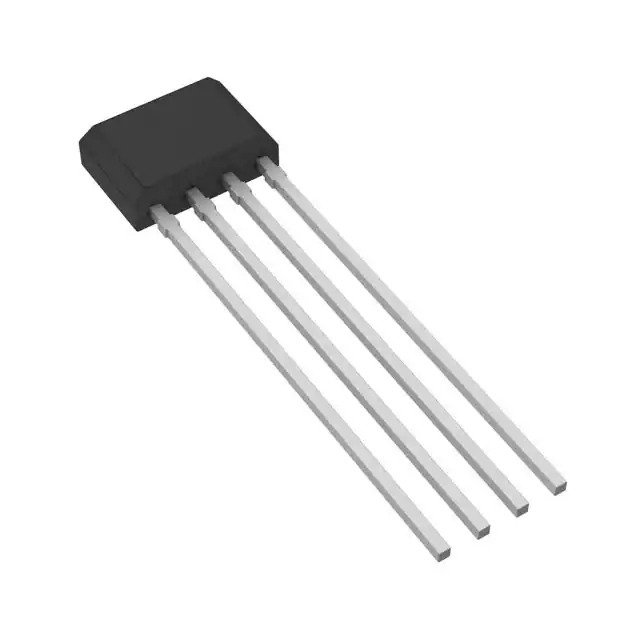

The AH5772-P-B is a state-of-the-art Hall Effect sensor IC designed and manufactured by Diodes Incorporated, a leading global provider and manufacturer of high-quality semiconductor products. This sensor is specifically engineered for applications requiring highly accurate and reliable magnetic sensing with a digital output signal.

Key Features

• High Sensitivity: The AH5772-P-B is designed to detect and respond to weak magnetic fields, making it suitable for a wide range of applications.
• Chopper-Stabilized Hall Element: This feature ensures temperature stability and minimizes the influence of external stress on the sensor's performance.
• Low Power Consumption: It is optimized for battery-powered applications where power efficiency is crucial.
• Open-Drain Output: Allows for easy interfacing with other circuit components and provides flexibility in signal processing.
• Wide Operating Voltage Range: The sensor operates over a broad voltage range, accommodating various system designs.
• Robust Design: The AH5772-P-B is built to withstand harsh environmental conditions, ensuring reliability and longevity.

Applications

The AH5772-P-B is versatile and can be used in multiple applications where precision magnetic sensing is crucial. Some of these applications include:

• Position and speed sensing in industrial and automotive systems
• Open and close detection in smart home devices
• Current sensing in power management systems
• Proximity detection in consumer electronics

Product Specifications

Diodes Incorporated has ensured that the AH5772-P-B meets stringent quality and performance standards. Some of the key specifications include:

• Supply Voltage Range: 2.5V to 5.5V
• Operating Temperature Range: -40°C to 85°C
• Output Type: Digital Open-Drain
• Package: SOT23

With its combination of features, the AH5772-P-B from Diodes Incorporated stands out as a reliable and efficient solution for a wide range of magnetic sensing applications.
