Introducing the AH276Q-PL-B-A Hall Effect Sensor from Diodes Incorporated

The AH276Q-PL-B-A is a state-of-the-art unipolar Hall effect sensor designed and manufactured by Diodes Incorporated, a leading provider of semiconductors and electronics components. This sensor is specifically engineered to deliver high sensitivity and reliability for a wide range of applications requiring accurate position and speed sensing.

Key Features:

• Unipolar Hall Effect Switch: The AH276Q-PL-B-A operates as a unipolar switch, which means it activates with a positive magnetic field and deactivates when the field is removed. This feature makes it highly suitable for detecting the presence of a magnet in applications such as open/close detection, revolution counting, and position sensing.
• High Sensitivity: Designed with precision in mind, this sensor offers high magnetic sensitivity, ensuring accurate and responsive performance even in environments with low magnetic fields.
• Wide Operating Voltage Range: The device supports a broad range of supply voltages from 3.5V to 20V, making it versatile for use in various electronic circuits and systems.
• Chopper-Stabilized Design: The AH276Q-PL-B-A incorporates a chopper-stabilized amplifier, which minimizes the effects of temperature and voltage variations. This leads to stable operation over a wide temperature range and enhances the longevity of the sensor.
• Open-Drain Output: The open-drain output configuration allows for simple interfacing with other circuitry and provides the flexibility to connect the output to a higher voltage, if required for the application.

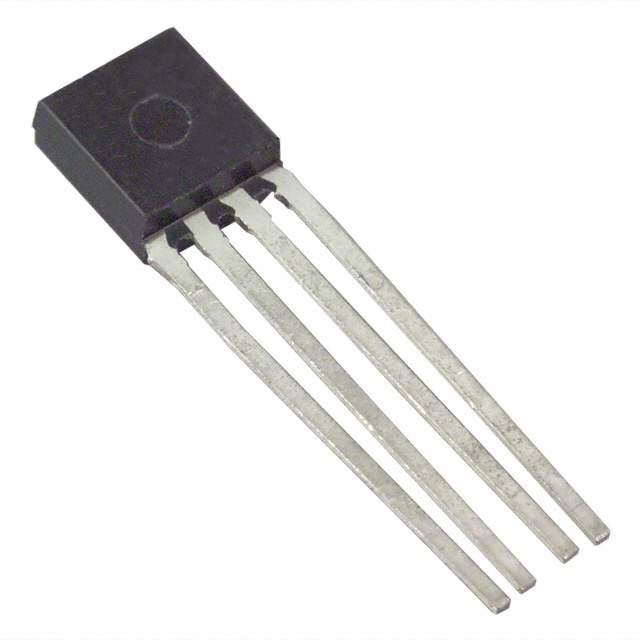

• Robust Package: Enclosed in a small and robust TO-92S package, the sensor is designed for easy integration into a variety of industrial and consumer products.

Applications:

The AH276Q-PL-B-A is ideal for a multitude of applications, including but not limited to:

• Brushless DC motor commutation
• Flow meters
• Speed and RPM sensors
• Position detectors
• Proximity switches
• Security and safety equipment

With its combination of high sensitivity, wide operating voltage range, and robust design, the AH276Q-PL-B-A Hall effect sensor from Diodes Incorporated is a top choice for designers looking to enhance the performance and reliability of their sensing solutions.
