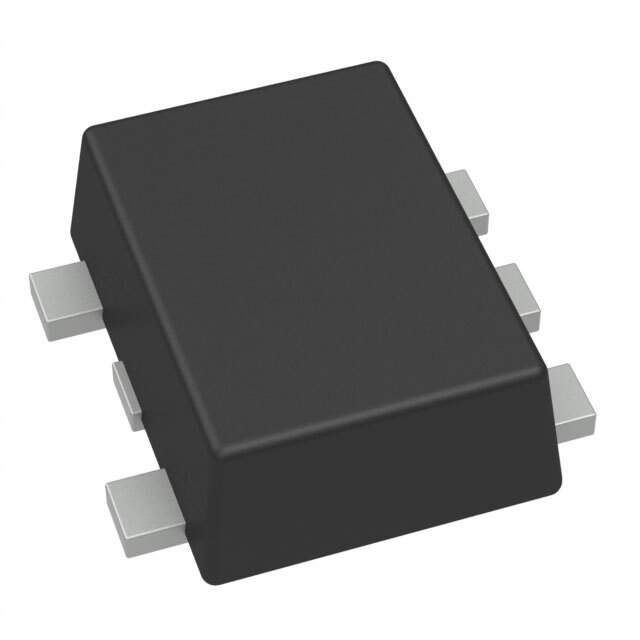

The AH1885-ZG-7 is a high-performance, micropower Omnipolar Hall Effect switch IC fabricated by Diodes Incorporated. This precision device is designed to meet the demanding requirements of power-sensitive and space-constrained applications. With its small footprint and low power consumption, the AH1885-ZG-7 is an ideal solution for a wide range of portable and battery-powered products.

Key Features

• Omnipolar Operation: The AH1885-ZG-7 can detect both north and south poles, making it versatile for various magnetic field sensing applications.
• Low Power Consumption: With a supply current as low as 24μA, this device is perfect for power-sensitive applications, helping to extend battery life in portable devices.
• High Sensitivity: The high sensitivity of the AH1885-ZG-7 allows for the detection of weak magnetic fields, providing reliable switching even with small or distant magnets.
• Chopper Stabilized Design: The chopper stabilized design ensures minimal temperature drift and consistent performance across a wide operating temperature range.
• Robust Output: The open-drain output of the AH1885-ZG-7 can directly drive loads or be connected to a microcontroller for digital signal processing.

Applications

The versatility of the AH1885-ZG-7 allows it to be used in a variety of applications, including:

• Portable electronic devices
• Power tools
• Domestic appliances
• Industrial equipment
• Flow meters
• Position and speed sensing

Technical Specifications

With its robust design and high sensitivity, the AH1885-ZG-7 from Diodes Incorporated stands as a top choice for designers looking to incorporate reliable Hall Effect sensing in their next project.
