The AH1815-Z-7 is a high-performance, micropower magnetic Hall-effect sensor designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This sensor is specifically tailored for consumer and industrial applications, where precision and power efficiency are paramount.

Key Features

• Omni-polar Operation: The AH1815-Z-7 can detect both north and south poles, making it versatile for various magnetic sensing scenarios.
• High Sensitivity: Engineered for high magnetic sensitivity, this sensor provides reliable switching points even with weak magnetic fields.
• Low Power Consumption: It operates with a very low supply current, which is ideal for battery-powered and portable devices, enhancing their operational lifespan.
• Wide Operating Voltage Range: With an operating voltage range from 2.5V to 5.5V, it can be easily integrated into a variety of circuits without the need for complex power management.
• Chopper-Stabilized Design: This design approach ensures stable operation over a wide temperature range and minimizes the sensor's sensitivity to physical stress and temperature variations.
• Open Drain Output: The output type is an open drain, which allows for simple connection to a microcontroller or other logic devices and provides the flexibility to use an external pull-up resistor of the desired value.

Applications

The AH1815-Z-7 is suitable for a wide array of applications, including but not limited to:

• Portable electronic devices
• Domestic appliances
• Industrial equipment
• Power tools
• Consumer electronics

Package and Availability

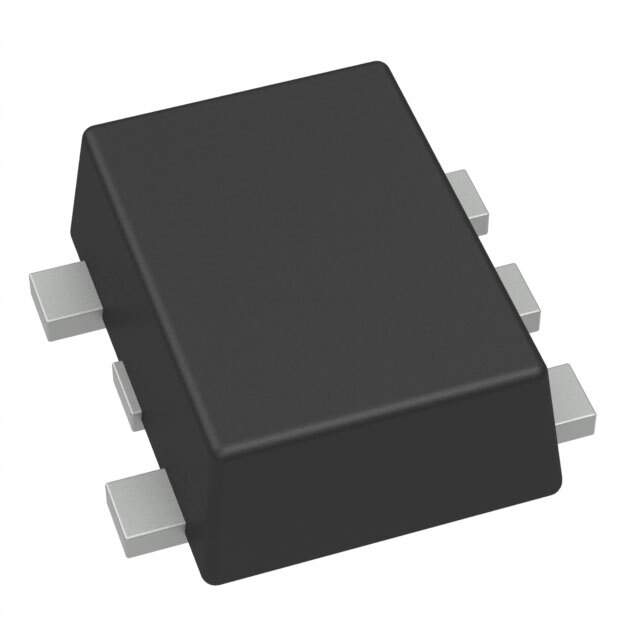

Presented in a compact SOT553 package, the AH1815-Z-7 occupies minimal space on a printed circuit board, which is a critical feature for space-constrained designs. This sensor is part of Diodes Incorporated's commitment to providing advanced sensing solutions that meet the evolving needs of the technology sector. For detailed specifications, sample requests, and ordering information, customers can visit the official Diodes Incorporated website or contact authorized distributors.
