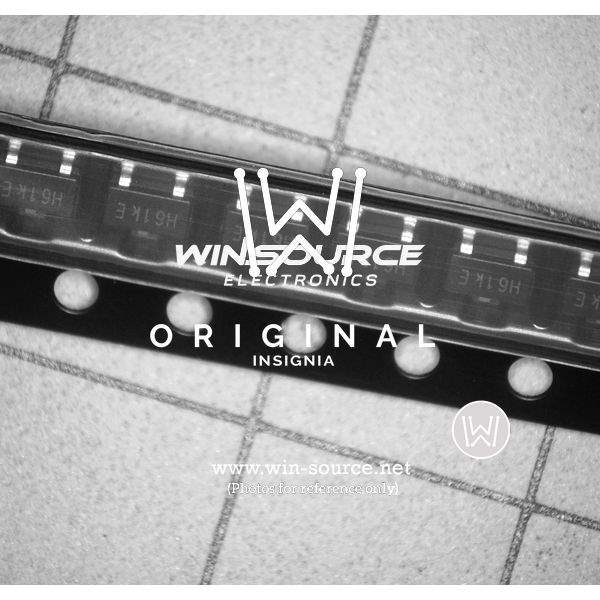

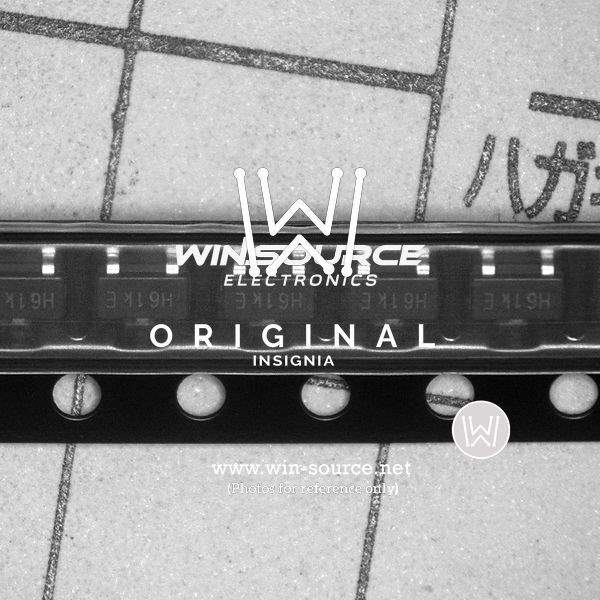

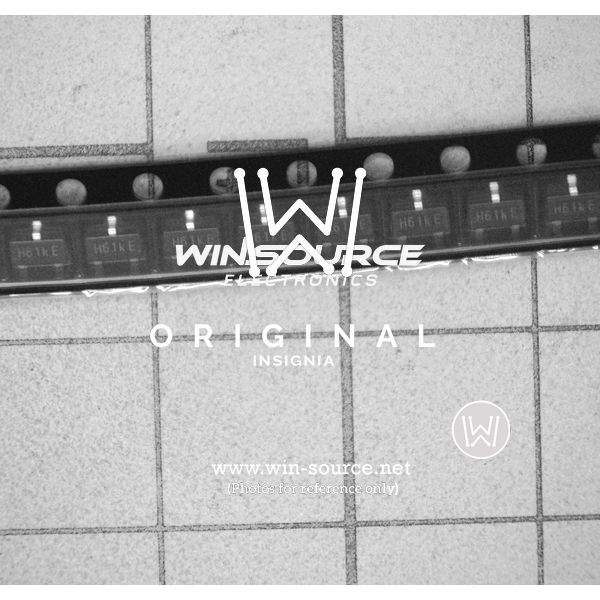

Introducing Product AH1806-W-7 from Diodes Incorporated

The AH1806-W-7 is a cutting-edge, high-performance unipolar Hall effect switch IC designed and manufactured by the renowned Diodes Incorporated. This sophisticated sensor is crafted for detecting magnetic fields with precision and reliability. It is an ideal solution for a wide range of applications, including position and speed sensing, proximity detection, and flow metering, among others.

The device operates by sensing the magnetic flux density and providing a digital output that switches from low to high when a magnetic field with a north polarity exceeds the operate point threshold. It is engineered to offer a fast response time and high sensitivity, making it suitable for applications that require accurate and rapid detection of magnetic fields.

One of the standout features of the AH1806-W-7 is its high immunity to mechanical stress and stability over a wide temperature range. This makes it exceptionally reliable in harsh environmental conditions, ensuring consistent performance whether in industrial settings or consumer electronics. The IC's robust design is complemented by its small footprint, housed in a compact SOT-553 package, which allows for easy integration into space-constrained applications.

The AH1806-W-7 also features an internal bandgap regulator that provides stable operation over a supply voltage range of 2.5V to 5.5V, making it versatile for various power environments. Additionally, its chopper-stabilized design ensures minimal drift over temperature and eliminates the need for external components, thus simplifying the design and reducing the overall cost.

With its omnipolarity, which allows it to be activated by either north or south pole, and no external pull-up resistor requirement due to its open-drain output, the AH1806-W-7 is a user-friendly and flexible option for designers and engineers looking to incorporate reliable Hall effect switches into their projects.

For those seeking a high-quality, dependable Hall effect sensor, the AH1806-W-7 from Diodes Incorporated offers an exceptional blend of performance, durability, and ease of use, making it an excellent choice for a multitude of magnetic detection applications.
