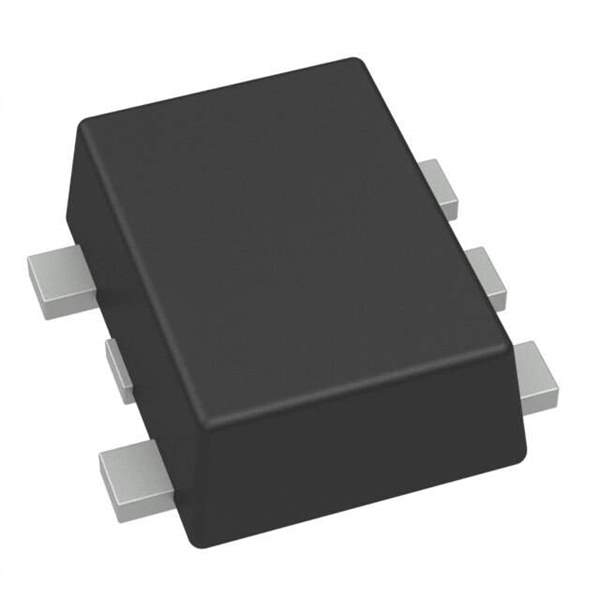

Product Overview: 74LVC1G14Z-7 by Diodes Incorporated

The 74LVC1G14Z-7 is a high-performance, single Schmitt-trigger inverter designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This device is part of the LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage system environments.

Constructed with advanced CMOS technology, the 74LVC1G14Z-7 offers optimum power and speed performance in a compact footprint. It is specifically designed to handle 1.65V to 5.5V operating voltages, making it highly versatile for a range of applications requiring different power levels. This feature is particularly beneficial for battery-operated and portable devices where power efficiency is crucial.

The 74LVC1G14Z-7 comes in a small 5-pin SOT25 package, which is ideal for space-constrained applications. Its small size does not compromise its functionality or performance, as it provides a high noise immunity and stable output due to its built-in Schmitt-trigger function. This makes the device highly reliable in environments with electrical noise, ensuring consistent performance and reducing the likelihood of false switching.

Additionally, the device is characterized for operation from -40°C to +125°C, making it suitable for industrial applications that require robust performance in extreme temperature conditions. The wide temperature range also makes the 74LVC1G14Z-7 a great choice for automotive and outdoor applications.

The 74LVC1G14Z-7 also features a 5A output drive capability at 3.3V, which provides a strong signal drive without the need for additional buffering. This allows for direct driving of larger loads, simplifying design and reducing component count. Furthermore, the device has a low static power consumption and supports high-speed operation, which is essential for modern high-performance electronics.

In summary, the 74LVC1G14Z-7 by Diodes Incorporated is a highly efficient, reliable, and versatile single Schmitt-trigger inverter that is suitable for a wide range of applications. Its low-voltage operation, robust temperature range, and compact packaging make it a top choice for designers looking for a high-quality inverter solution.
