Product Overview: 74LVC1G04Z-7 from Diodes Incorporated

The 74LVC1G04Z-7 is a high-performance, single inverter gate integrated circuit brought to you by Diodes Incorporated, a leading manufacturer in the semiconductor industry. This product is designed for use in a wide range of applications where space constraints and low power consumption are critical considerations. The device belongs to the 74LVC family, which is well-known for its low-voltage operation and compatibility with TTL (Transistor-Transistor Logic) levels.

Key Features

• Logic Type: The 74LVC1G04Z-7 is a single inverter gate that performs the boolean complement function on the input signal.
• Supply Voltage Range: It operates on a very low voltage range from 1.65V to 5.5V, making it suitable for battery-operated and low-power applications.
• High-Speed Operation: With a propagation delay of just a few nanoseconds, this IC ensures high-speed operation, which is crucial for modern digital circuits.
• Output Drive Capability: The device can drive up to 5 LSTTL loads, providing sufficient current for a variety of digital logic needs.
• Power Consumption: It features a very low static power consumption, with a typical ICC of only 10μA, significantly reducing the overall power usage of the system.
• Operating Temperature: The 74LVC1G04Z-7 is designed to operate over a broad temperature range, from -40°C to +125°C, suitable for industrial and automotive environments.

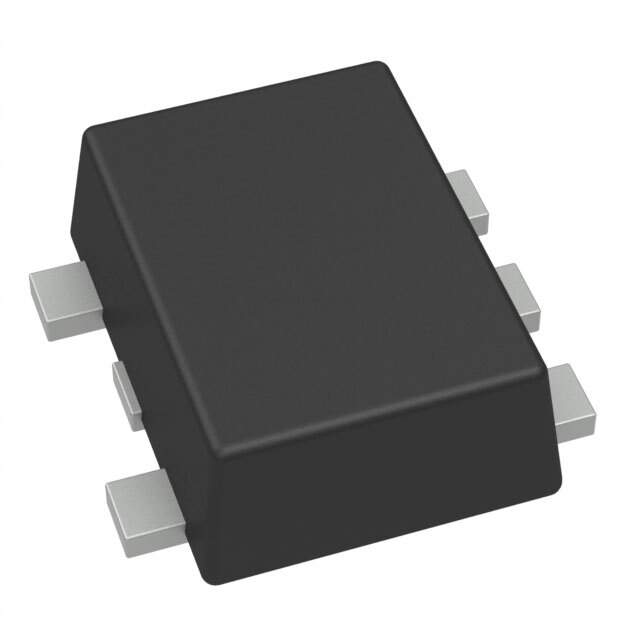

• Packaging: The device comes in a compact SOT-553 package, which is ideal for space-constrained applications.

Applications

The versatility of the 74LVC1G04Z-7 makes it an excellent choice for a vast array of electronic circuits. It is commonly used in:

• Logic level translation
• Signal inversion
• Oscillator circuits
• Waveform shaping
• Glitch elimination
• Power-on reset circuits

With its robust design and reliable performance, the 74LVC1G04Z-7 from Diodes Incorporated is an essential component for designers seeking a high-quality inverter gate with low power consumption and high-speed operation. Whether for consumer electronics, automotive, or industrial applications, this IC ensures efficient and reliable functionality in the most demanding situations.
