Diodes Incorporated 74AVC1T45FW3-7

The 74AVC1T45FW3-7 is a versatile, high-performance single-bit dual-supply voltage level translator from Diodes Incorporated. This compact device is designed to facilitate communication between systems operating at different voltage levels, making it an ideal solution for multi-voltage digital system applications. The 74AVC1T45FW3-7 ensures seamless data transfer between components, addressing the needs of modern electronics where interfacing between various logic levels is essential.

With its wide voltage range, the 74AVC1T45FW3-7 supports translation between 1.2V and 3.6V on the VCCA side, and 1.65V to 5.5V on the VCCB side, providing users with the flexibility to interface between low-voltage and higher-voltage digital systems. This level translator is specifically engineered to deliver high-speed operation with a maximum data rate that is not limited by the device, ensuring that it can keep up with fast communication protocols without becoming a bottleneck.

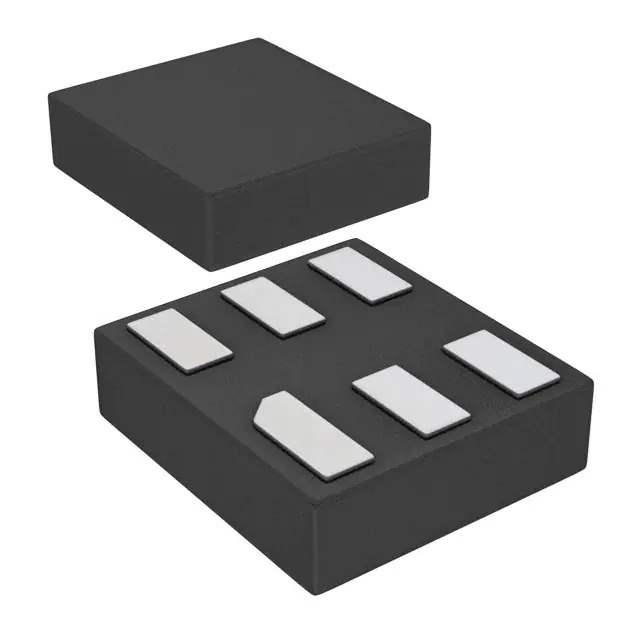

The 74AVC1T45FW3-7 comes in an ultra-small leadless DFN1410-6 (SOT1202) package, which is highly space-efficient, making it an excellent choice for space-constrained applications such as mobile devices, portable electronics, and IoT gadgets. Despite its small size, it offers robust performance, featuring a low on-state resistance that ensures minimal signal distortion and power loss.

One of the key features of this device is its auto-direction sensing capability, which eliminates the need for a direction control signal. This feature simplifies the design and reduces the complexity of the circuit, saving both time and resources during the development phase. Additionally, the 74AVC1T45FW3-7 is equipped with over-voltage tolerant I/Os, ensuring the device is protected even if the I/O lines exceed the supply voltage.

For applications that demand low power consumption, the 74AVC1T45FW3-7 excels with its power-down protection on inputs and outputs, which allows the input side to be driven to GND or VCC with no power supply present on the other side. This ensures that the device is not only energy-efficient but also reliable and secure in power-critical situations.

In summary, the 74AVC1T45FW3-7 from Diodes Incorporated is a highly reliable, efficient, and versatile level translator, making it an excellent choice for designers looking to bridge different voltage domains within their digital systems.
