Diodes Incorporated 74AUP2G86RA3-7 Logic Gate

The 74AUP2G86RA3-7 from Diodes Incorporated is a high-performance, dual-input Exclusive OR (XOR) gate integrated circuit, designed to meet the stringent power and space requirements of modern electronic devices. This advanced logic gate is part of the ultra-low power AUP (Advanced Ultra-low Power) family, using the latest semiconductor technology to provide a perfect balance between speed and energy efficiency.

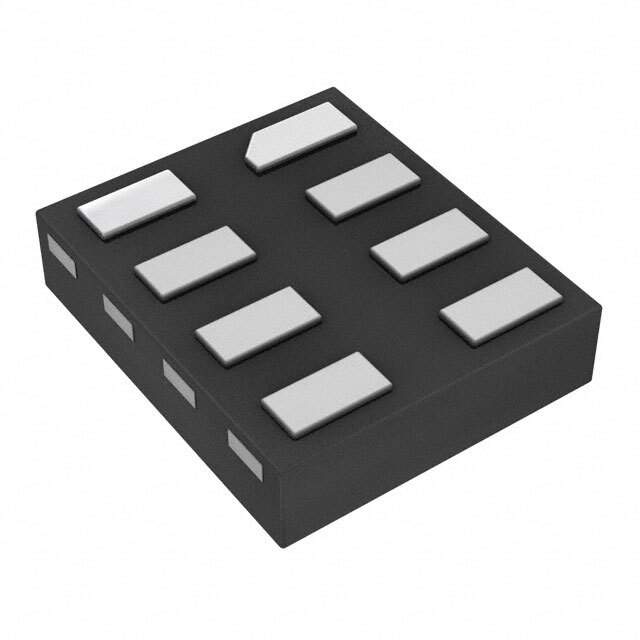

With its tiny footprint, the 74AUP2G86RA3-7 is housed in a compact 8-pin XSON package, making it an ideal choice for space-constrained applications. Despite its small size, this component does not compromise on performance, offering fast switching capabilities with a propagation delay typically below 3.6 ns. This ensures high-speed operation for a variety of digital logic applications, ranging from portable devices to complex computing systems.

The device operates over a wide power supply range of 0.8 V to 3.6 V, enabling compatibility with most low-voltage systems and ensuring minimal power consumption. This feature is particularly beneficial for battery-powered devices where power efficiency is paramount. Additionally, the 74AUP2G86RA3-7 boasts an extremely low static power consumption of less than 0.9 µA, significantly reducing the overall power draw of the system it is integrated into.

Another notable feature of this XOR gate is its I_off circuitry, which provides partial power-down mode operation by disabling the outputs, preventing damaging current backflow into the device when it is powered down. This ensures the longevity and reliability of both the logic gate and the system it is a part of.

For design flexibility, the 74AUP2G86RA3-7 is fully specified for partial power-down applications using IOFF. The product also features over-voltage tolerant inputs that allow for interfacing with higher voltage logic levels without sustaining damage. This makes it a versatile component that can be easily integrated into mixed-voltage systems.

In conclusion, the 74AUP2G86RA3-7 from Diodes Incorporated is an exemplary logic gate that offers a combination of low power consumption, high-speed operation, and a tiny form factor. It is an excellent choice for designers who need a reliable and efficient XOR gate for their next-generation electronic projects.
