Product Overview: 74AUP1G08FX4-7 by Diodes Incorporated

The 74AUP1G08FX4-7 is a high-performance, single 2-input positive AND gate integrated circuit designed by Diodes Incorporated, which is part of their advanced ultra-low power (AUP) series. This device is engineered to operate over a wide range of power supplies, with a very low static and dynamic power consumption, making it an ideal choice for battery-operated and power-sensitive applications.

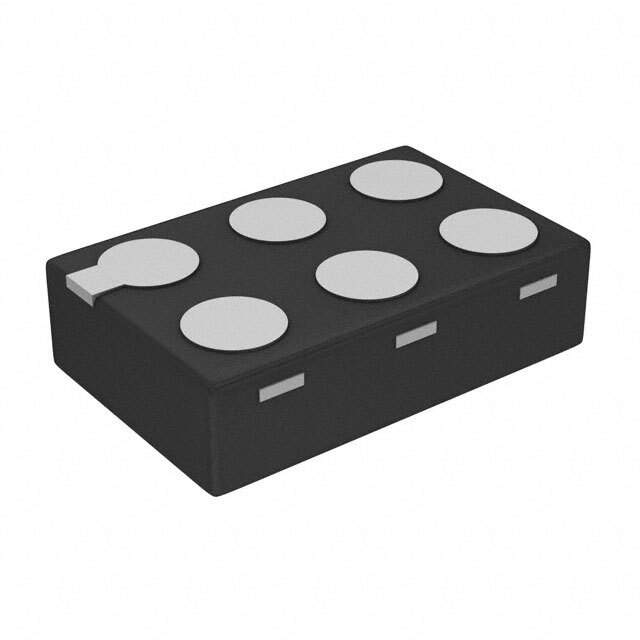

Constructed with advanced silicon-gate CMOS technology, the 74AUP1G08FX4-7 ensures that the quiescent current is significantly low, which is beneficial for extending battery life in portable devices. This component offers a standard pinout and is housed in a compact 6-pin XSON package, which is highly suitable for space-constrained applications.

Key Features:

• Low Power Consumption: The device features ultra-low power consumption with a typical I_CC of only 0.9 µA, maximizing battery life in portable applications.
• Wide Operating Voltage Range: It operates across a voltage range of 0.8V to 3.6V, providing design flexibility for various power supply requirements.
• High-Speed Operation: The 74AUP1G08FX4-7 offers high-speed performance with a propagation delay (t_pd) of only 3.5 ns at 3.3V, allowing for fast signal processing.
• Low Noise Overshoot and Undershoot: This IC exhibits reduced noise during voltage transitions, which minimizes the risk of erroneous switching.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is integrated, ensuring the device's robustness for handling and assembly processes.
• RoHS Compliant: The product meets RoHS standards, which means it is manufactured without harmful substances such as lead, making it environmentally friendly.

The 74AUP1G08FX4-7 is an exemplary choice for designers looking for a logic gate with minimal power draw and high-speed operation. Its applications span across various fields including mobile phones, PDAs, computing devices, and any other systems where power efficiency is paramount. With its robust design and comprehensive features, the 74AUP1G08FX4-7 from Diodes Incorporated stands out as a reliable and efficient component for your digital logic needs.

Please note that the actual product's specifications should be verified with the manufacturer's datasheet to ensure accuracy in design and application.
