1.5KE200A-T Transient Voltage Suppressor Diode by Diodes Incorporated

The 1.5KE200A-T is a robust transient voltage suppressor (TVS) diode designed and manufactured by Diodes Incorporated. This high-quality electronic component is engineered to protect sensitive electronic equipment from voltage transients induced by system inductance and lightning. With its unidirectional polarity, the 1.5KE200A-T is specifically tailored to offer a safeguarding solution for single-line applications.

Key Features

• Peak Pulse Power Dissipation: The 1.5KE200A-T boasts an impressive peak pulse power dissipation of 1500W at 10/1000μs waveform, which ensures reliable performance during transient voltage spikes.
• Breakdown Voltage: It has a stand-off voltage of 171V, with a minimum breakdown voltage of 190V, providing a wide margin for secure operation under surge conditions.
• High Surge Capability: This TVS diode has been tested with surge capability up to its maximum clamping voltage, ensuring that it can handle significant surge events without failure.
• Low Incremental Surge Resistance: The 1.5KE200A-T features a low incremental surge resistance, which helps to minimize the voltage drop across the diode when a surge occurs.
• Operating Temperature Range: The device operates effectively over a broad temperature range from -55°C to +175°C, suitable for various challenging environments.

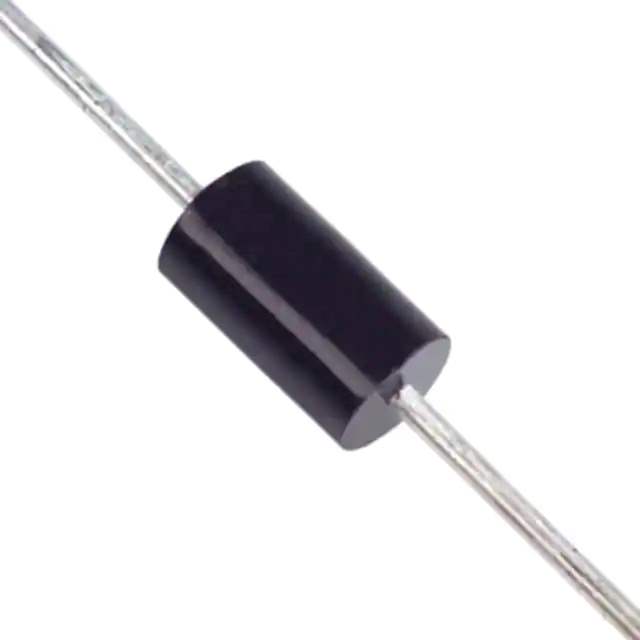

• Package: Supplied in an axial-lead package, the 1.5KE200A-T is compatible with high-volume assembly lines and offers ease of integration into a wide array of circuit designs.

Applications

The 1.5KE200A-T is ideal for protecting voltage-sensitive components in a range of applications, including:

• Industrial systems
• Communication infrastructure
• Power supply units
• Automotive electronics
• Consumer electronics

With its combination of high power dissipation, surge capability, and robust construction, the 1.5KE200A-T from Diodes Incorporated is a reliable choice for designers looking to enhance the durability and longevity of their electronic products against voltage transients.

For detailed specifications, application notes, and safety instructions, customers are encouraged to review the official datasheet and product documentation available from Diodes Incorporated.
